Description

808nm 15W Multi-Function Detachable Diode Laser

Features：
15W output power
808nm wavelength
Standard fiber coupling for 400μm/
0.22NA
Customer options：
Red aiming beam
Power PD
Thermistor
Fiber detector
Applications：
Medical use
Material processing

Parameter:

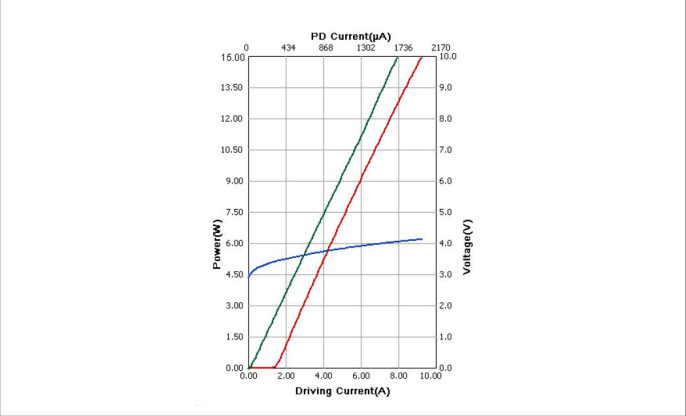

CW Output Power: 15W

Threshold current: 1.8A

Operating current: 11A

Operating voltage: 4V

Reverse Voltage: 5V

Slope Efficiency: 1.6W/A

Electrical-to-Optical Efficiency: 40%

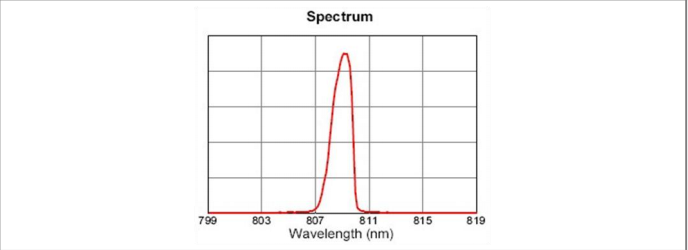

Center wavelength: 798nm~818nm

Spectral width(FWHM): 6nm



Wavelength Shift with Temperature: 0.3nm/℃

Fiber Data:

Buffer diameter: 730μm

Cladding diameter: 440μm

Core diameter: 400μm

Numeric aperture: 0.22

Others:

ESD:  500V

Storage Temperature（Non-operating）: -20~70

Lead Soldering Temp: 260℃

Lead Soldering Time: 10sec

Operating Case Temperature: 15~35℃

Relative Humidity: 15~75%

PD Data:

Current: 200~2000μA

Thermistor:

10±3%/3477(K Ω)/β(25℃)

Aiming Beam Data:

Output Power: 2mW

Wavelength: 630~643nm

Voltage: 2.2V

Current: 45~65mA

Please kindly check the datasheet:

808nm 15W Multi-Function Detachable Diode Laser
