785nm Infrared Laser DPSS 1W

$1,490.00

Description

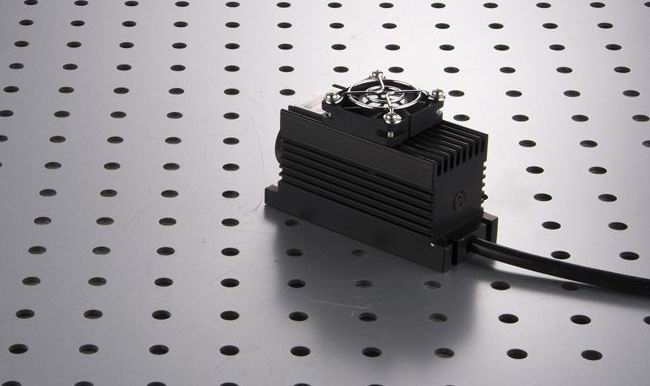

785nm Infrared Laser DPSS 1W

Model No.:LSR785H

  Wavelength:785(+/-5) nm

  Spatial Mode :multimode

  Output Power:1W, 2W, 5W

  Operation Mode:CW or Modulation

  Polarization:10:1

  Pointing Stability:<0.05 mrad

  Beam Diameter(1/e2):5 mm

  Beam Divergence :4 mrad

  Power Stability*:<±3% per 2 hrs

Beam Height :29mm

  Temperature Stabilizing:TEC

  Warm Up Time:<5 minutes

  Beam Quality (M2):<2

  Optimum Operating Temperature :20~30oc

  Storage Temperature:10~50oC

  MTTF** :10,000 hrs

Laser head dimensions:155(L)x77(W)x60(H)mm3

Power Supply :A. OEM type

LSR-PS-NI: 100(L)x70(W)x55(H)mm3

AC/DC PSU: 85~265V 50/60Hz input

B.  Lab type

LSR-PS-F: 163(W)x234(D)x94(H)mm3

C. Adjustable Lab type

LSR-PS-FA: 178(W)x197(D)x84(H) mm3

Modulatio:0~30khz Analog or TTL
