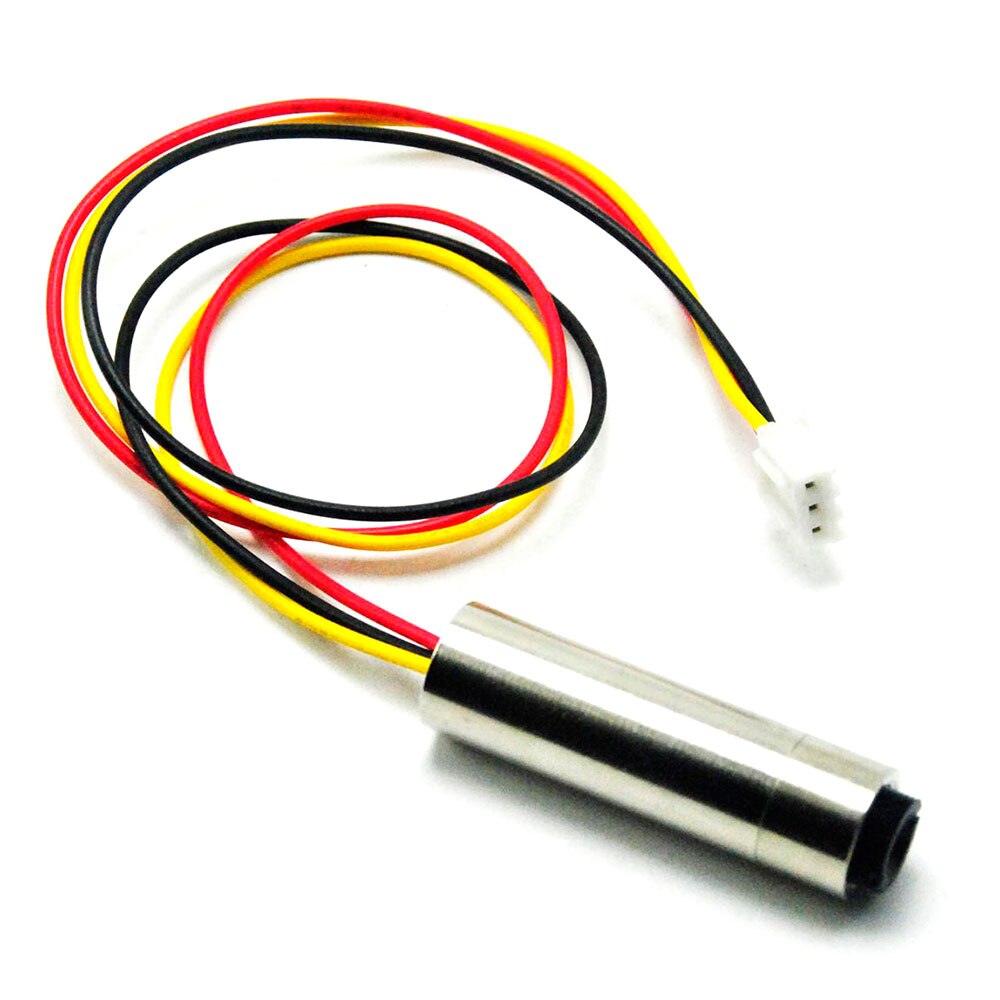

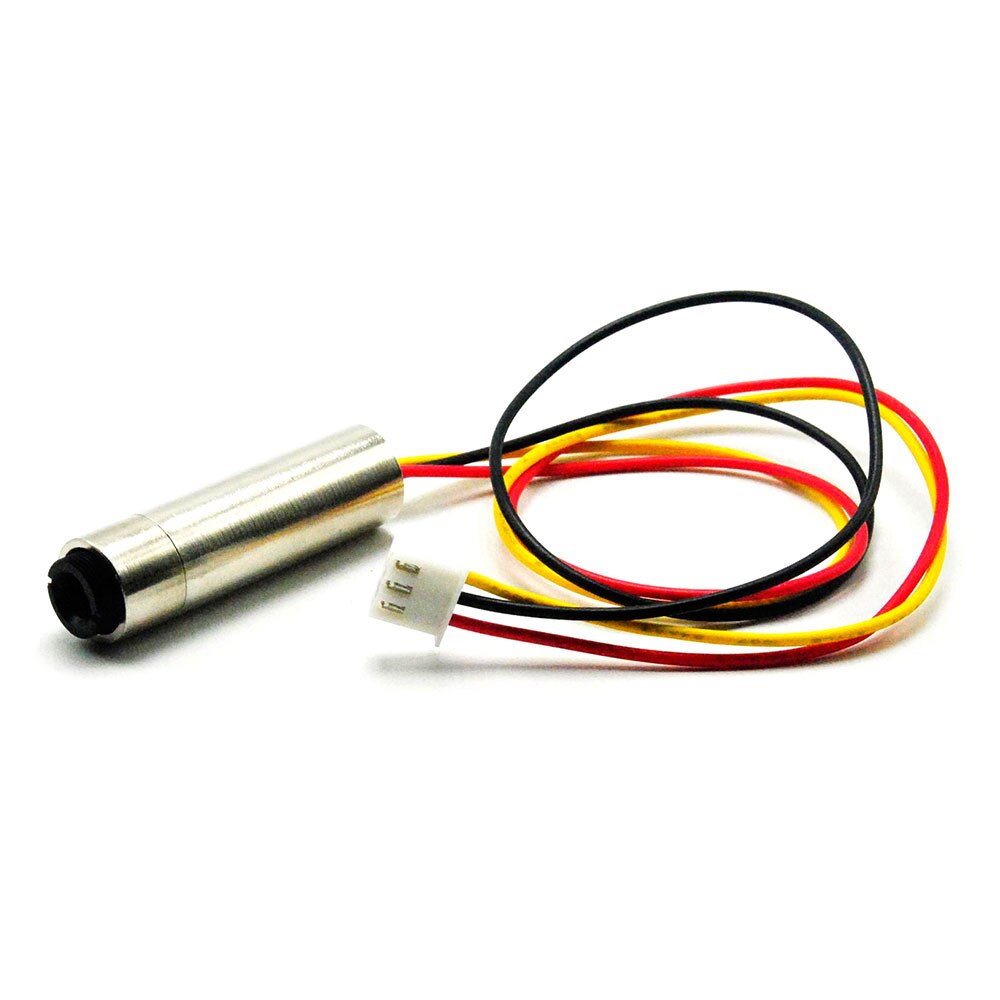

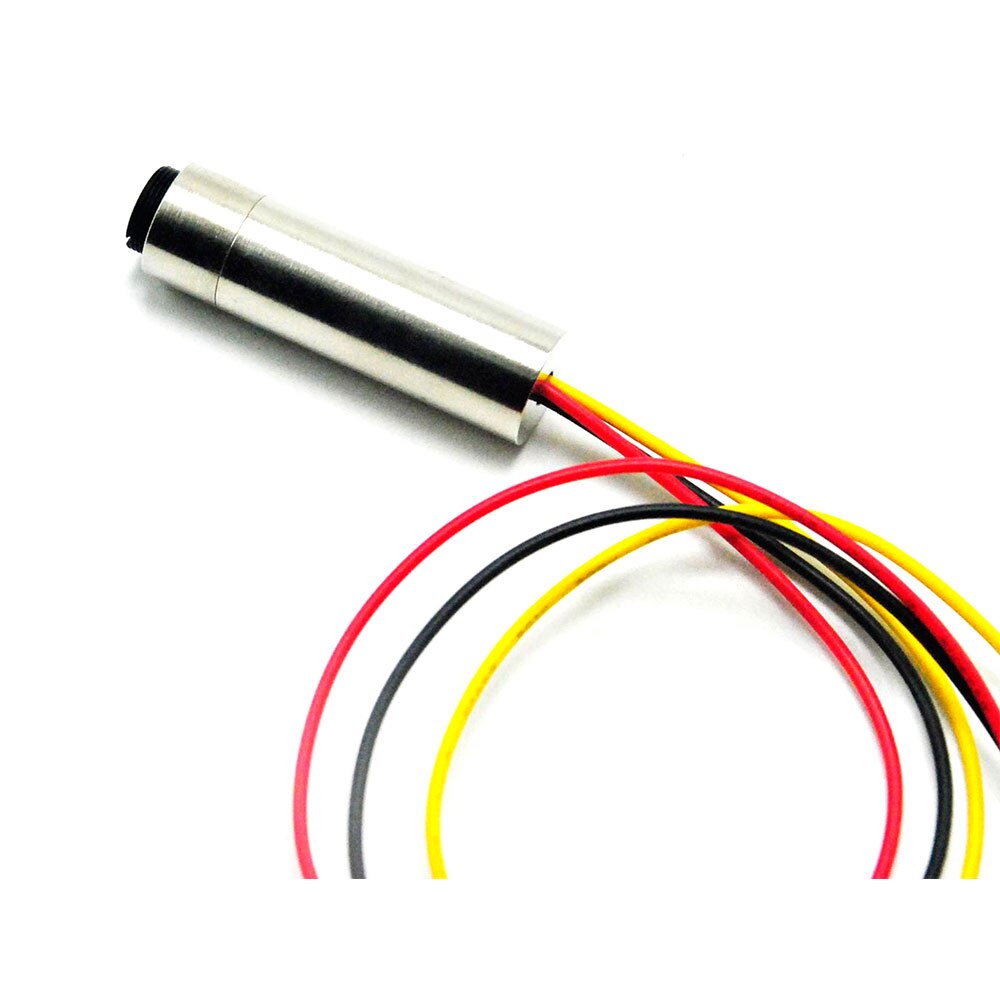

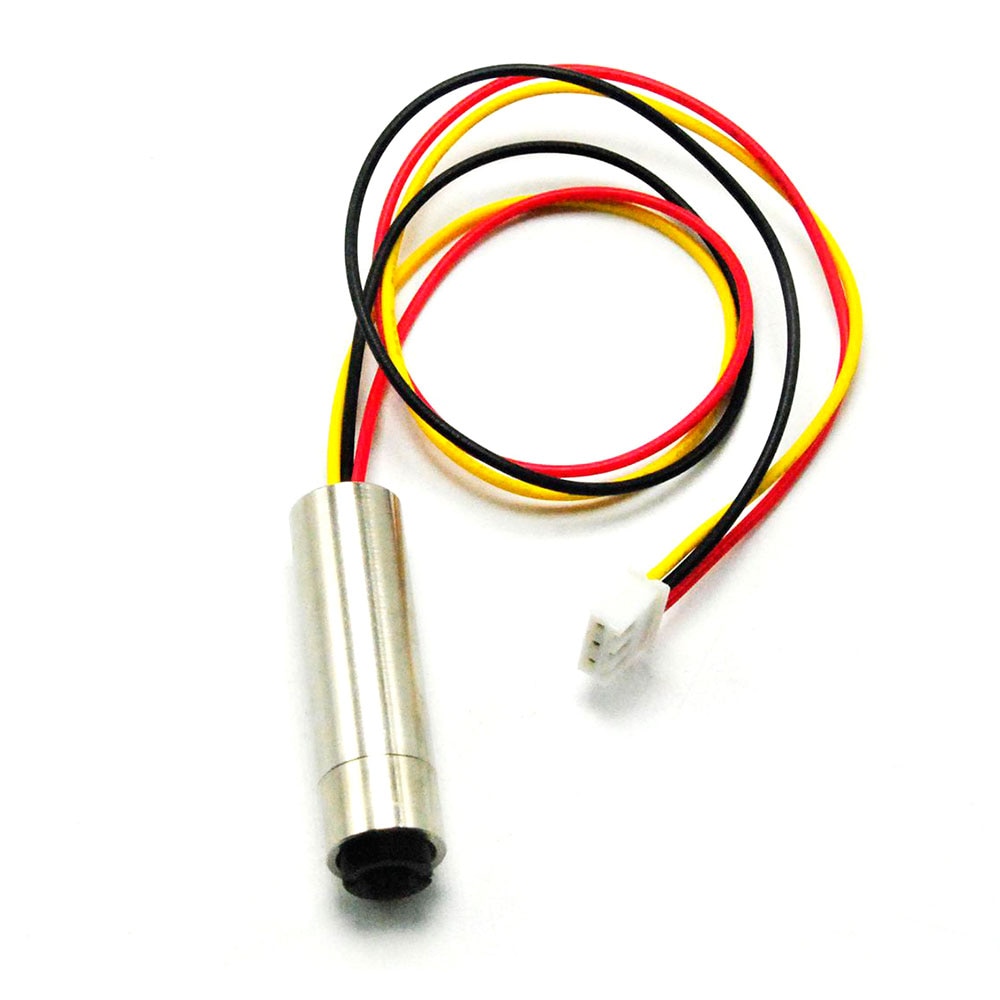

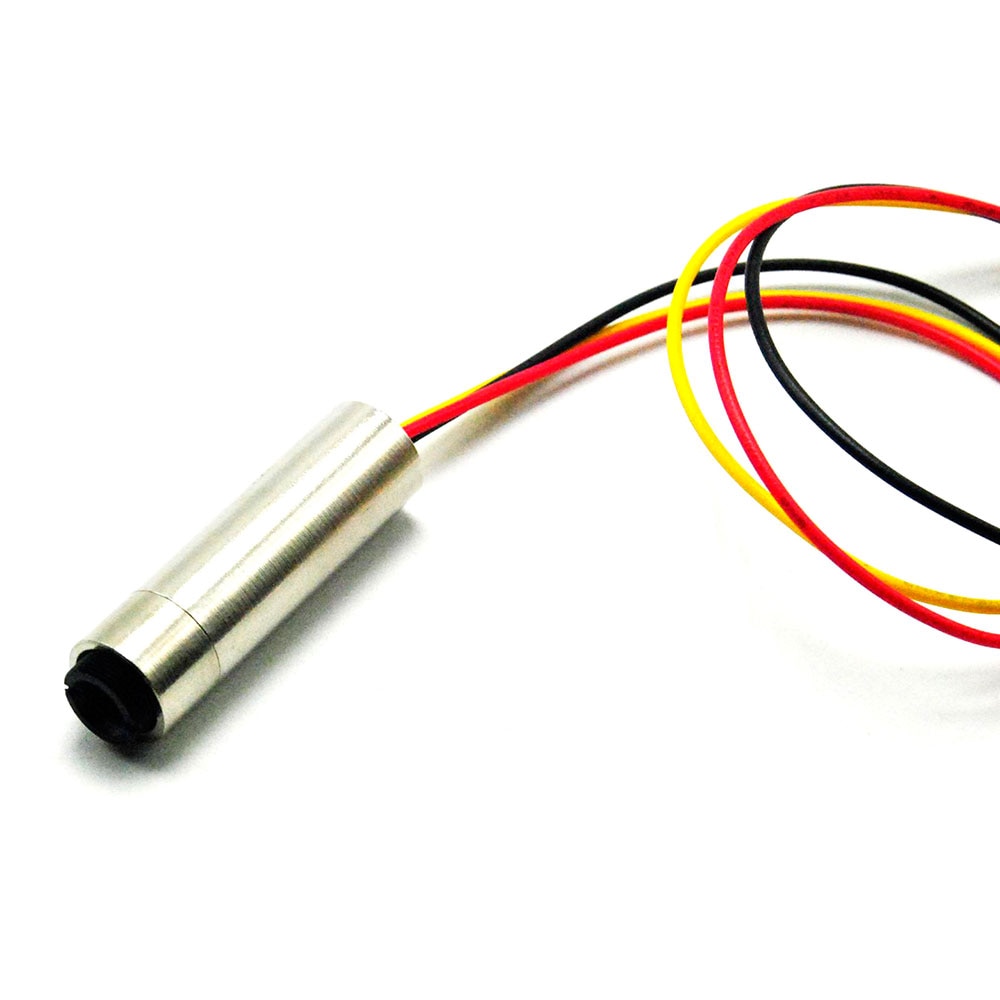

5vdc 980nm 30mw Infrared IR Laser Diode Module Focus Dot Head w/ TTL 0-15khz 12mmx30mm

Description

980MD-30 Focusable 3V-5V 980nm 1mw Infrared IR Adjusted Laser Dot Diode Module with TTL 0-15KHz 12x30mm Class 2

Specification
Output Power: 30 mw
Wavelength: 980nm
Operating voltage: 3.0-5.0VDC
Continuous current: <100mA
Working Temperature: -10 degrees~+40 degrees
Dimensions: 12mmx30mm(sometimes 12x40mm according to factory production)
Outlet terminals XH-2.54 * 3PIN
TTL:>2.5V ON/<1.6V OFF, High open low off , Normal status close
TTL Output: 0-15KHZ square wave

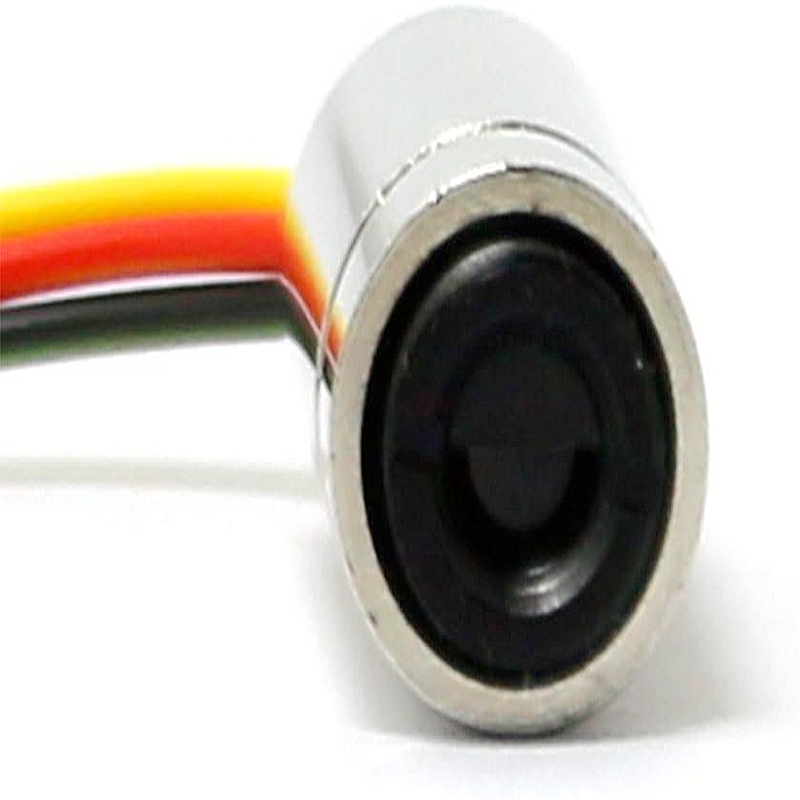

The Lens focus is adjustable, not fixed, can adjust to an appropriate spot size, and then fix it.
Off low, high open, normal status close If you only connect its black and red wire, the laser module would not be lighted and would not work.

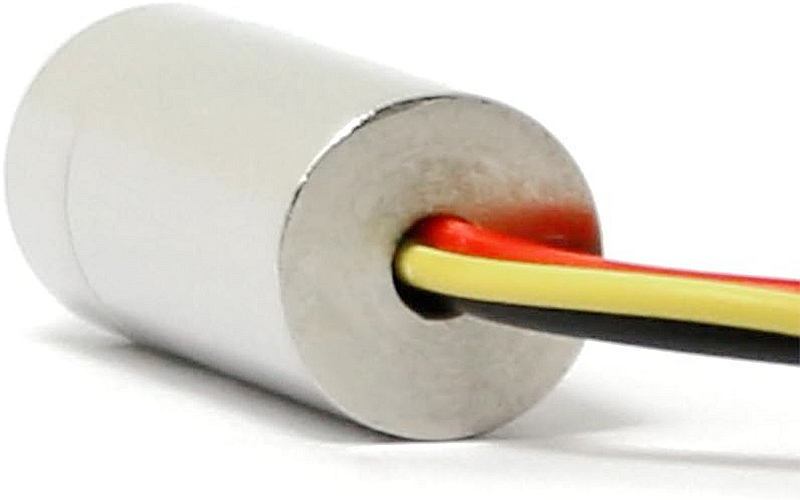

Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive.
If no signals,the yellow line connect + pole;If it does have signal,yellow line connect positive signals.

Features:
This 980nm laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.
This is IR laser which will be invisible for human eye,but only for night vision camera or our IR detection Card.Please be aware of it before buying.
The laser module is and precise and sensitive optical instrument.
Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
This laser module cannot work for a long time without addtional cooling heatsink, otherwise the laser diode’s life would be much shortened or get burnt.
