Description
- Brand Name: ZRHF
- Certification: RoHS
- Origin: JP(Origin)
- Item Type: Stage Lighting Effect
- Occasion: Professional Stage & DJ
- Light Output: 200mW
- Operating Voltage: 2.5~2.8V
- Operating Current: 260mA
Features
1. Absolute maximum ratings：200mW (CW)
400mW(Pulse)

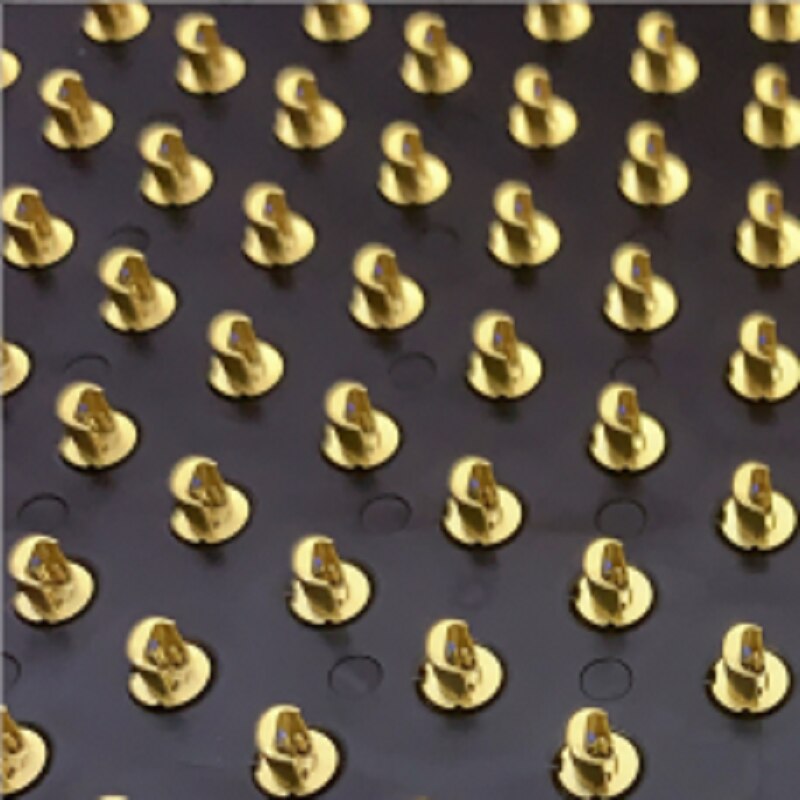

2. TO-38 (Φ3.8mm) packaged
Electrical and Optical Characteristics(Tc=25℃)
Lasing Wavelength:660nm(±5nm)
Optical Output:200mW
Threshold Current:65mA
Operating Current:260mA
Operating Voltage:2.5V~2.8V
Operating Temperature:-10 to +75℃
Pin Description
Pin1 Non Connect
Pin2 LD Cathode(case)
Pin3 LD Anode
