Description
- Brand Name: ZRHF
- Certification: RoHS
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Light Output: 50mW
- Operating Voltage: <8.0V
- Operating Current: <160mA
Features
1.Single tranverse mode semiconductor laser

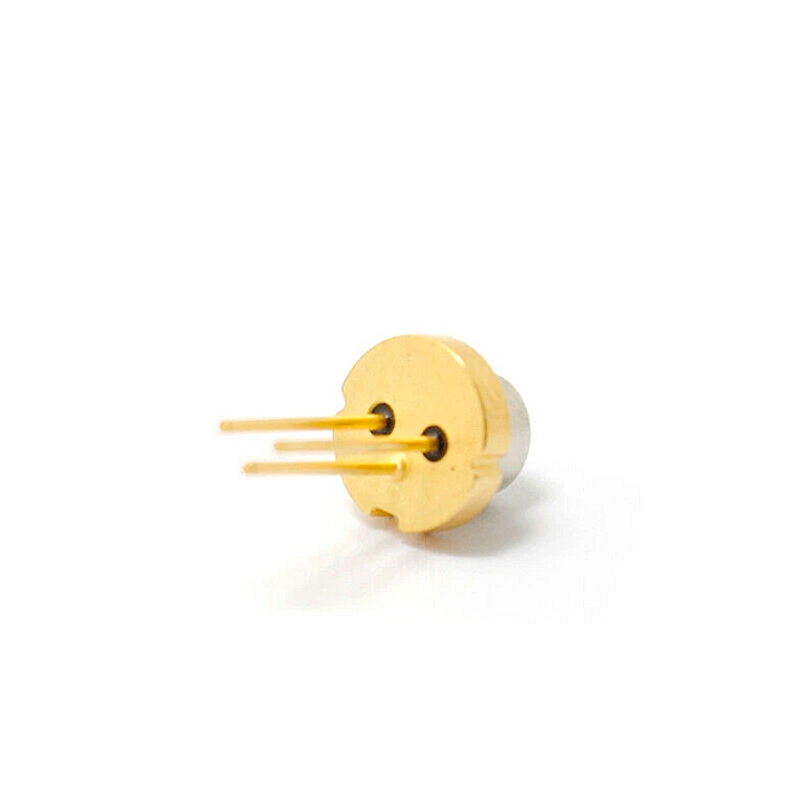

2.TO56 package with photo diode
Electrical and Optical Characteristics(Tc=25℃)
Lasing Wavelength:520nm(±10nm)
Optical Output:50mW
Threshold Current:45mA
Operating Current:125mA
Operating Voltage:6.5V~8.0V
Monitor Current:0.09mA
Operating Temperature:-20 to +60℃

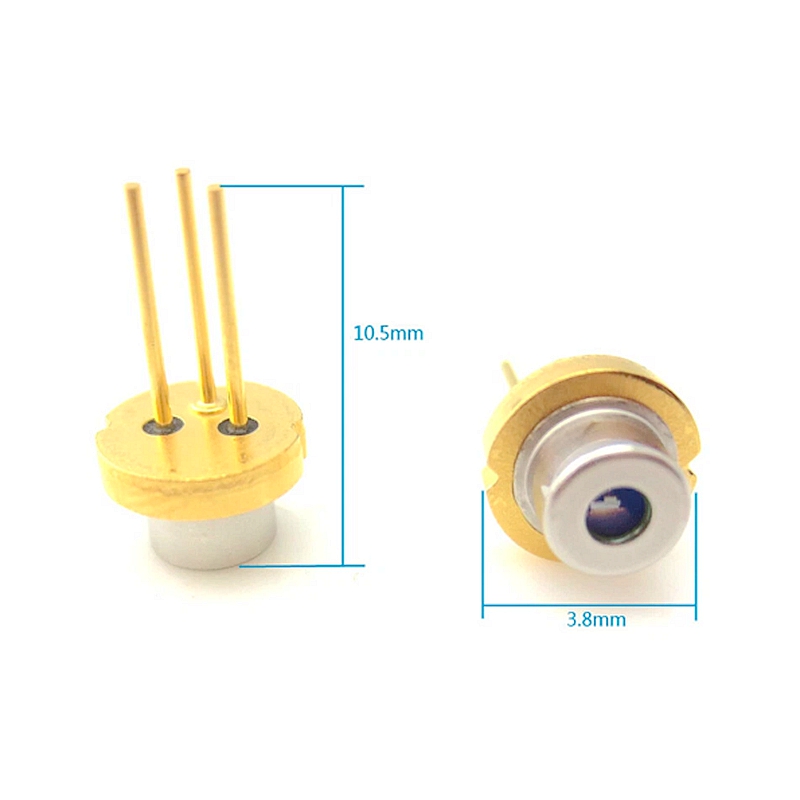

External dimensions(Unit : mm)
Pin Description
Pin1 PD Anode
Pin2 LD Cathode
Pin3 LD Anode,PD Cathode(case)
