technical parameter

Working voltage 1.8V-4.5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate.

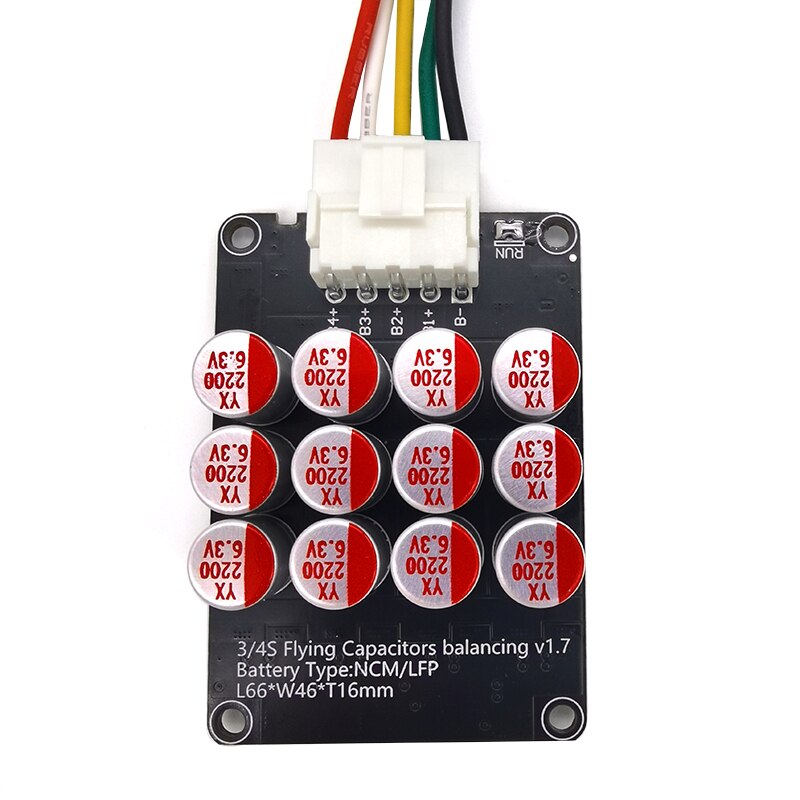

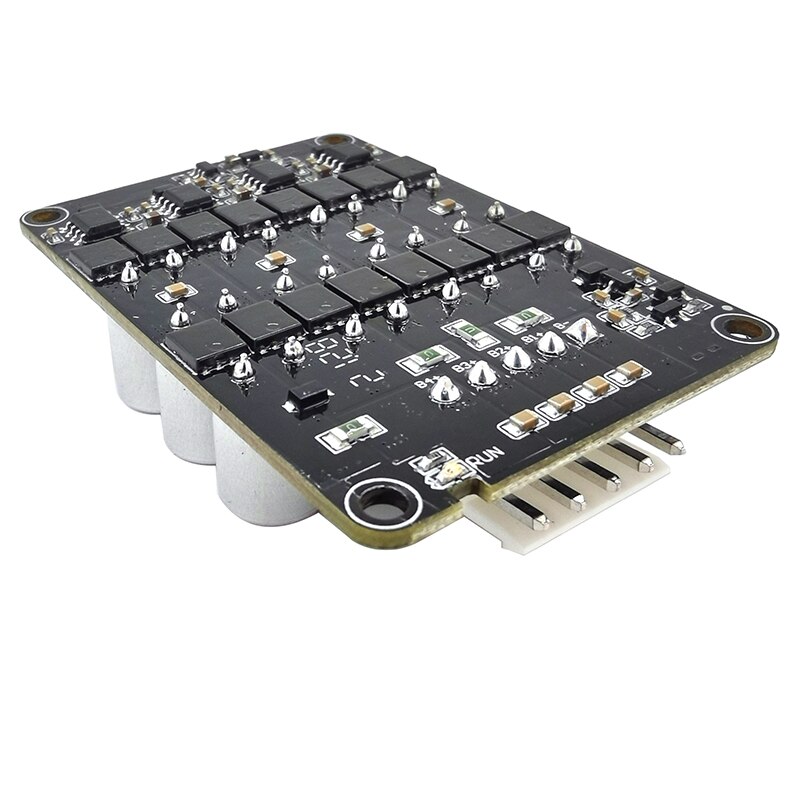

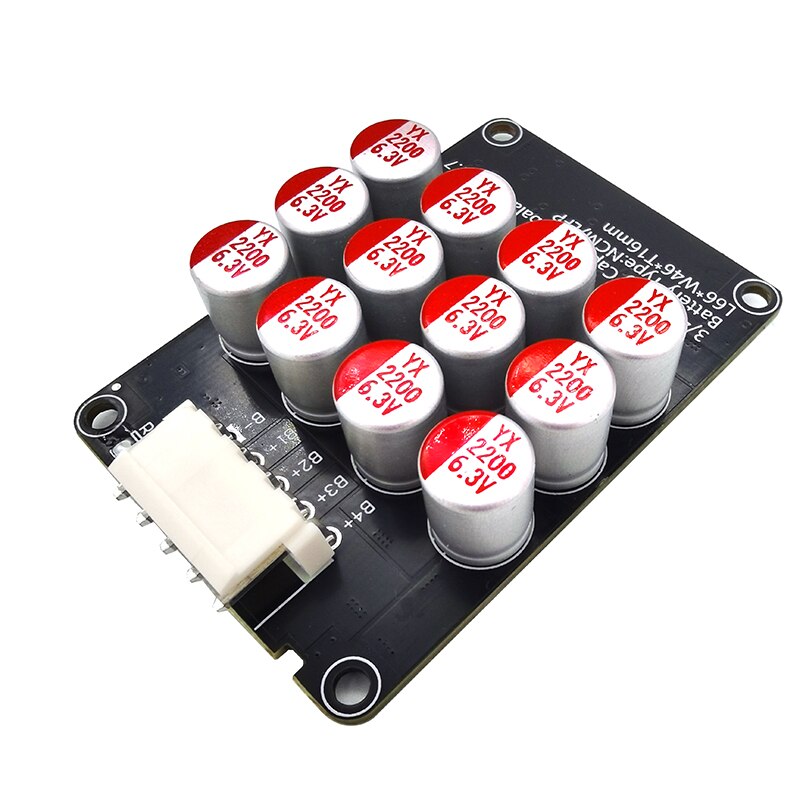

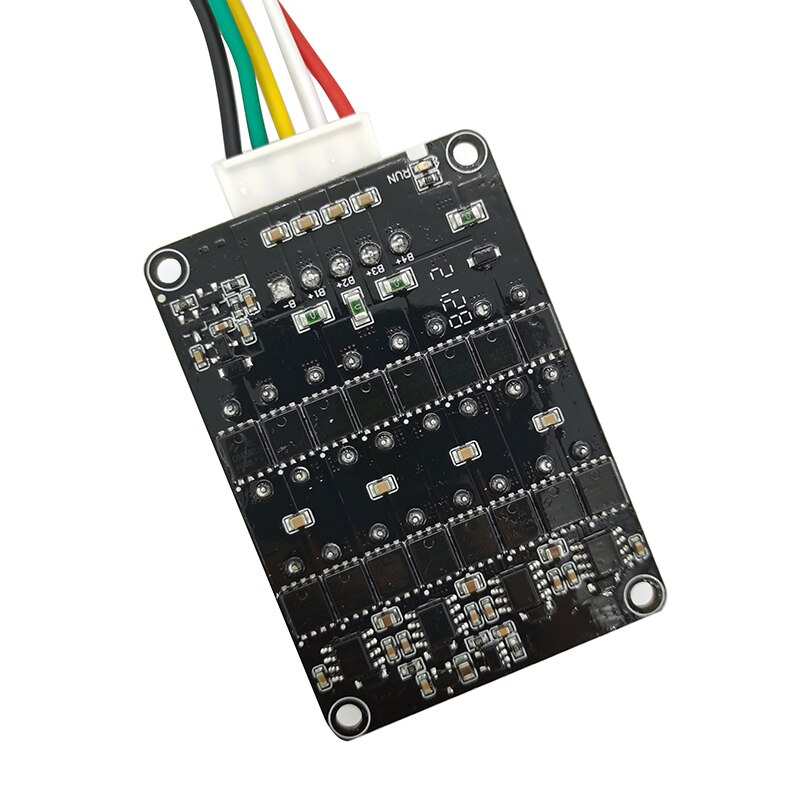

Working principle, the capacitive fit transfers the charge porter, the equalization board is connected to the battery and the equalization work is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB, equalization current 0-5.5A, the more the battery, the smaller the equalization current, The wiring position of the dormant switch is reserved, the working current of the dormant power-off mode is less than 0.1mA, and the balance voltage accuracy is within 5mv!

The quiescent current is about 12 mA, and it is recommended that the battery capacity is between 60-300 AH.

With under-voltage sleep protection, the voltage will automatically stop entering the sleep state when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1 mA.
