Laser Head Tube Module Accessory Laser Engraving Machine Replace Parts for OLM /OLM-1/OLM-2 Laser Engraver Machine

$159.00$179.00

SKU: 4001022163164 Category: Tag:

Description

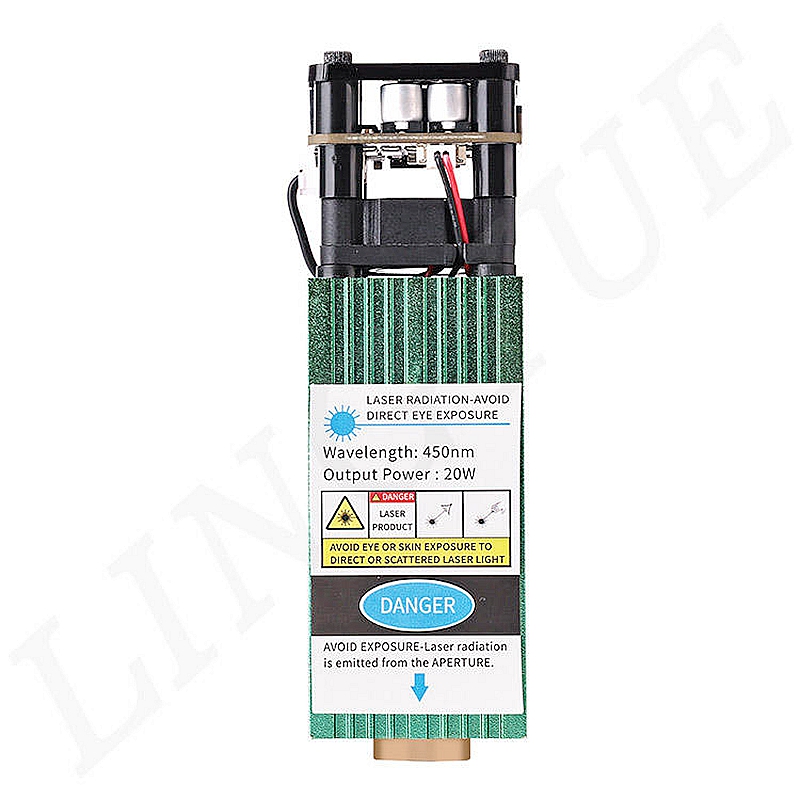

20W Laser Head Tube Module Accessory Laser Engraving Machine Replace Parts for OLM /OLM-1/OLM-2 Laser Engraver Machine
Features:
Interface specification: 7W
laser head: HY2.0, 4
Pin terminal (4-core cable, red: VCC, black: GND, yellow: PWM +, white: PWM-);
15W & 20W laser head: HY2.0, 4
Pin terminal ( 3-core cable, combined with one negative empty port, red: VCC, black: GND, white: PWM +).
Lens: φ6 / glass
Drive position: 7W: built-in; 15W & 20W: external
Adjustable power: PWM adjustable
Focusing range: 7W & 15W: 30-100mm; 20W: 50-100mm
Factory focal length (adjustable): 7W: 58mm from light outlet (from bottom of radiator); 15W & 20W: 55mm from light outlet (from bottom of radiator)
Drive protection: surge protection, overvoltage protection.
Input voltage: 12V
Input current: 7W: 0.75A, 15W: 1.8A; 20W: 2.1 A
Control line installation: pluggable
Fan: 7W: 12V 0.1A 3010 fan; 15W & 20W: 12V 0.15A 4020 fan
Fan speed: 10000 rpm
Operating temperature: -20 ℃ to 70 ℃

Note:
LU7W-660: Control line length: 660 ± 10mm
LU15W-600 Control line length: 600 ± 10mm
LU20W-600 Control line length: 600 ± 10mm

Specification

General

Type: Laser engraving module
Material: Aluminum + copper + PCBA + glass lens + plastic
Laser Power: LU7W: Laser Module: Electric Power-7W, Luminous Power-1,100-1,600mW; LU15W: Laser Module: Electric Power-15W, Luminous Power-4,000-4,500mW; LU20W: Laser Module: Electric Power-20W, Luminous Power-5,000 -5,500mW
Laser Reaching Range: 7w & 15w: 30-100mm; 20W: 20-50mm
Power By: power adapter supply

Dimensions and Weight

Product weight: 0.1100 kg
Package weight: 0.3000 kg
Product size (L x W x H): 3.30 x 3.30 x 7.50 cm / 1.3 x 1.3 x 2.95 inches
Package size (L x W x H): 15.50 x 7.50 x 8.00 cm / 6.1 x 2.95 x 3.15 inches

Package Contents

Package Contents: 1 x Laser Module, 1 x Cable
LU7W Replaceable Laser Module
7w17w-17www

LU15W Replaceable Laser Module

15w15ww1

LU20W Replaceable Laser Module

20w120w-120wwww

sample2sample-3未标题-4
