Description

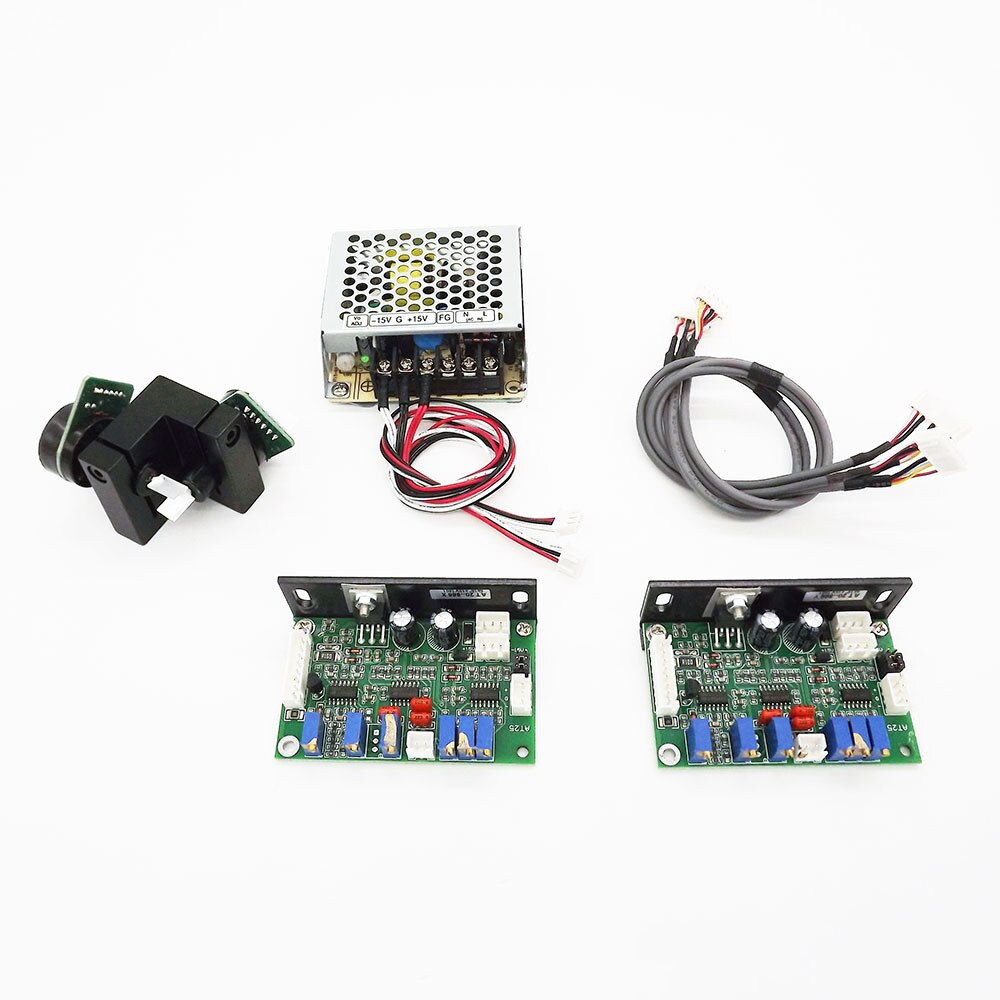

20K Galvo Scanner Laser Light Galvo Scanners ILDA Laser Show Galvanometer Laser Scanners For Disco Light Stage Lighting Effect
-Input voltage:15V
-for Peak current: 1A
-Rated current:0.5A
-Operating temperature:0~50℃
-Rated scanning angle:± 20 °
-Maximum scanning angle: ± 30 °
-Drive plate size:76mm × 48mm × 26mm
-Wavelength:380nm-700nm
-Analog signal input impedance: 200K ± 1% Ω (differential input)
-Analog position input range: ± 5 V.
-Scanning speed:20Kpps
-Lens reflectivity:> 98% @ 45 ° incidence (coverage wavelength: 380nm-700nm)
Optional parts:
Scanfail board is optional
DMX board is optional
ILDA board is optional
Multifunctional ILDA&DMX Control Board is optional
LCD display is optional
SD memory function is optional
Scanning Angle:
