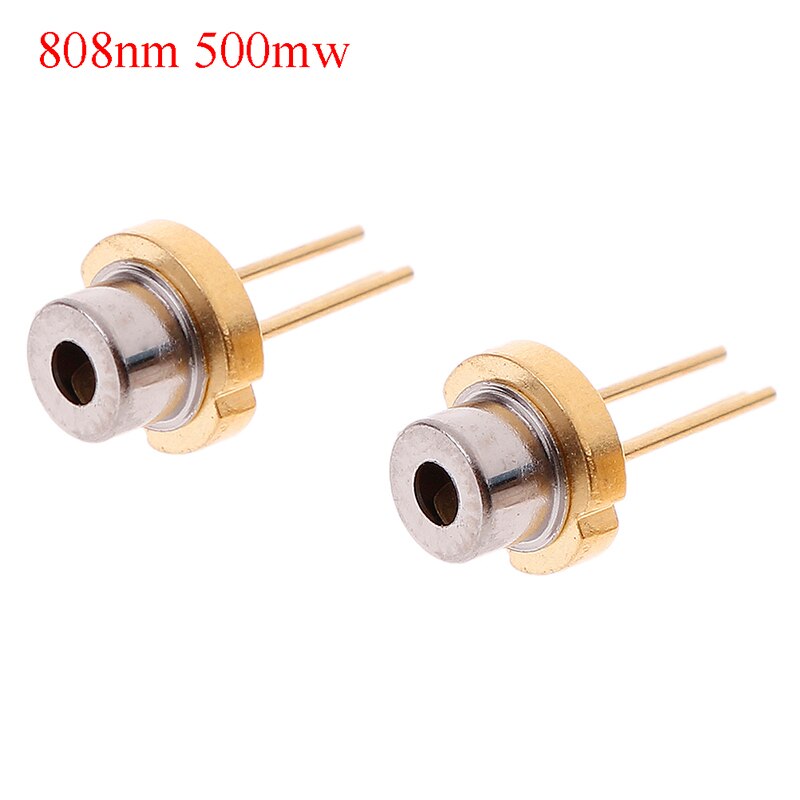

Wavelength: 808nm ,Power Output: CW 500mW ,
Working Current: I<500mA
Working Voltage: 2V
Sealed Size: TO18(5.6mm)
Lifespan:>10000 hours
Note before buying:This is special sensitive  optical compoents. Please be sure opertor has enough DIY and electronics espeirence

Include:1Pc

B

Material:Metal
Size: about 0.7cm/0.27″
[Conversion: 1cm=0.3937 inch, 1inch=2.54 cm]

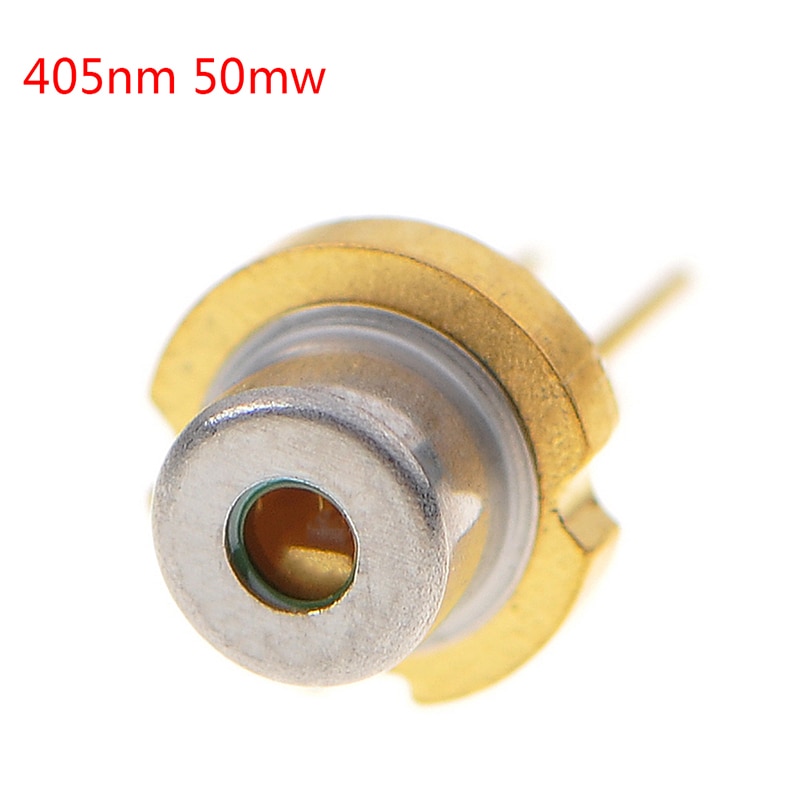

Model:SLD3232VF
Wavelength: 405nM±5nm (Violet)
Output power: CW 50mW
Voltage:5.0V
Current: <75mA
Specifications: TO-18 (5.6mm)
Working temperature: -10~50°C
Life: more than 10,000 hours

Note:
-Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.
-Please allow 1-3MM differs due to manual measurement.
-Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
Applications:
Laser beauty, Laser medical treatment, laser modules, stage Laser Lighting, laser pointer, laser flashlight, laser projector, laser positioning, laser sight, and a variety of laser devices and products.

C

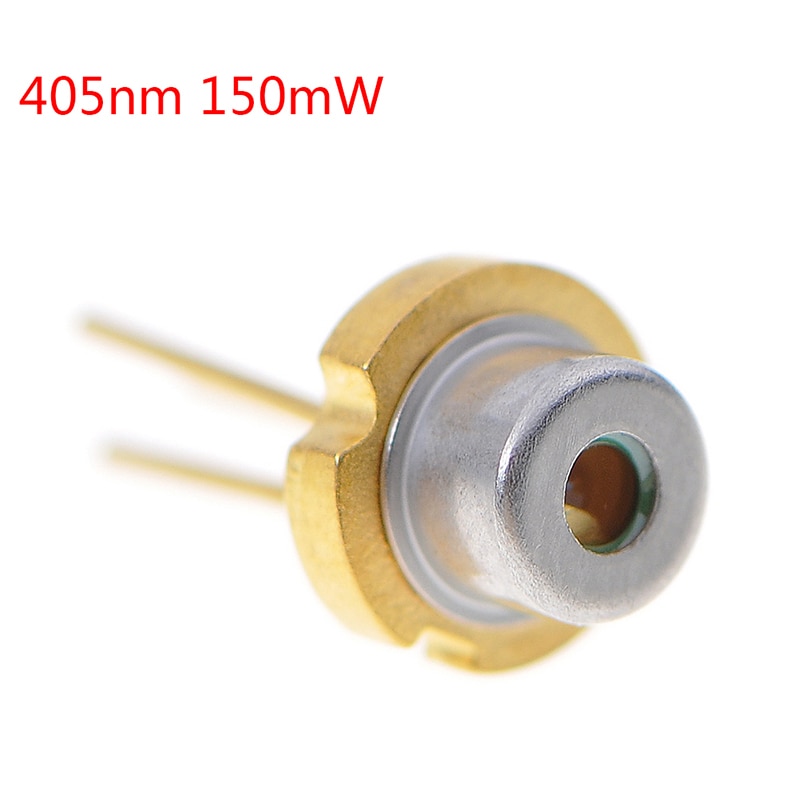

Wavelength length:405nm
Power Output: CW 150mW
Working Current: I<140mA
Working Voltage: 5-5.5V
Sealed Size: TO18(5.6mm)
Lifespan:>5000 hours
Note before buying: This is special sensitive  optical compoents.
Attention:
1.Laser beam is harm for eyes during process please avoid any directly see on the aperture.
2.Please use the suitable LD power driver, instant reverse current can not exceed than 25uA
Reverse voltage cannot exceed than 2V,otherwise the LD will be damaged.
3.Please install the LD well before connecting to the power.The initial input voltage should be zero.
4.To increase/ decrease the current gradually for avoiding any current pulse which will damage the LD.
5.Please store or use the LD under dry and air flow ambient.To avoid any situation of  condensation which will damage the LD.
6.Working under high temperature will increase the threshold current and decrease the efficiency conversion,speed up the aging of the LD.
7.The exceed power output will speed up the aging of the LD.
8.To use the LD with enough head dispensing or uner the cooling ambient.
9.Laser diode belongs to electrostatic sensitive components. Should deal with anti-electrostatic method.
To touch the LD directly unless humanbody is well connect with ground. Otherwise the LD will be burned easily.
To wear anti-eletrostatic wrist band is necessary.

Include:
1 pc laser diode
