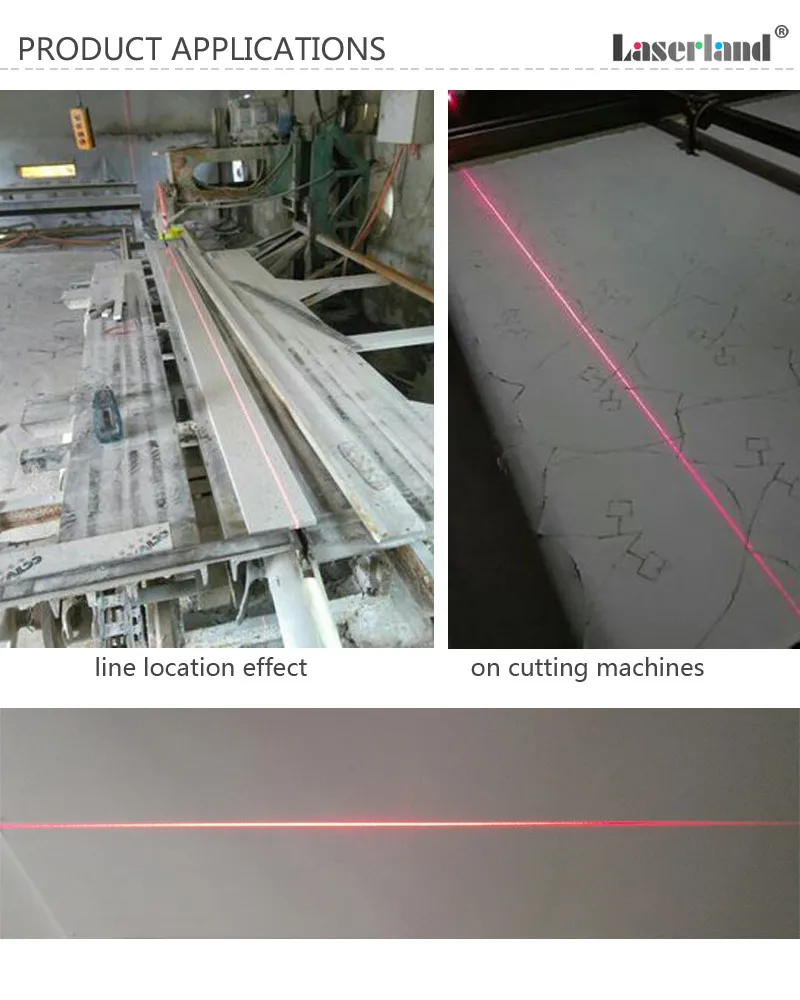

1668mm 50mw 100mw 200mw 650nm Red Line Laser Module Dot Cross Hair Line Laser Focusable Alignment Locator Wood Cutting Sawmill

Description

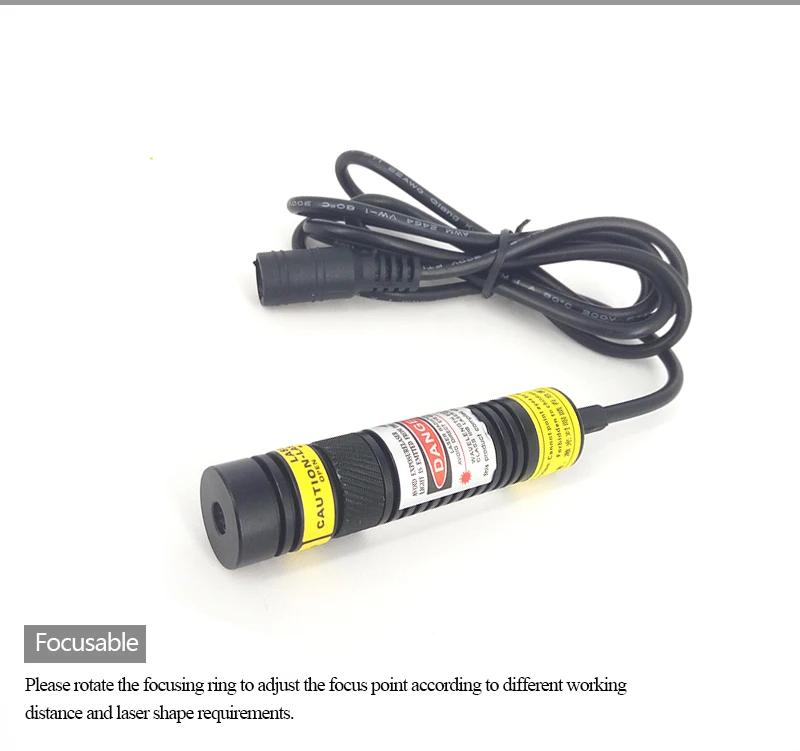

650nm 50mW~200mW Red Professional Laser Module Line With Collimation Point Focus Adjustable

[Specification]
Product Name: Laser module
Wavelength: 650nm
Output Power: 50mW / 100mW / 200mW (Choose)
Laser Safety: Class Ⅲb

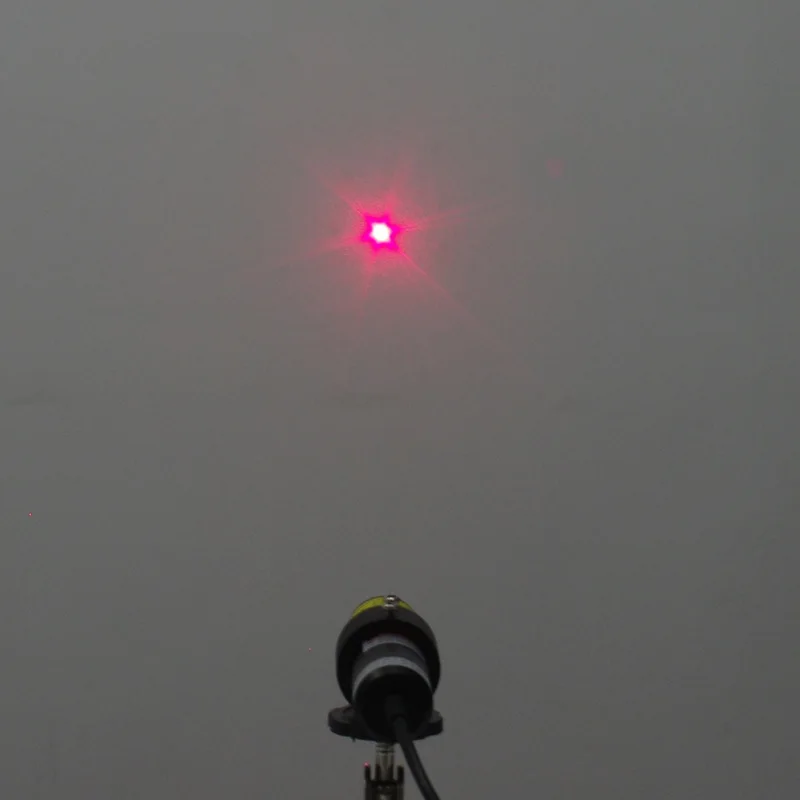

Laser Shape: Line + Point
Working Mode: CW
Line Width: At 1m, the small spot is 2mm for white objects and 1mm for black objects.
Line Length: 4-6 meters long at 1 meter, the longer the distance, the longer the line
Power stability: < 1% (10H)
Lens: K9 glass lens + K9 glass special lens + anti-dust lens
Shell Treatment: Aluminum + Anodized
Divergence Angle: 120°
Size: φ12*48mm
Power Supply Voltage: 3V~5V
Power Supply Current: 100~200mA
Operating Temperature: -10~+45℃
Storage Temperature: -10~+70℃
Mean Time to Failure: >12,000hrs

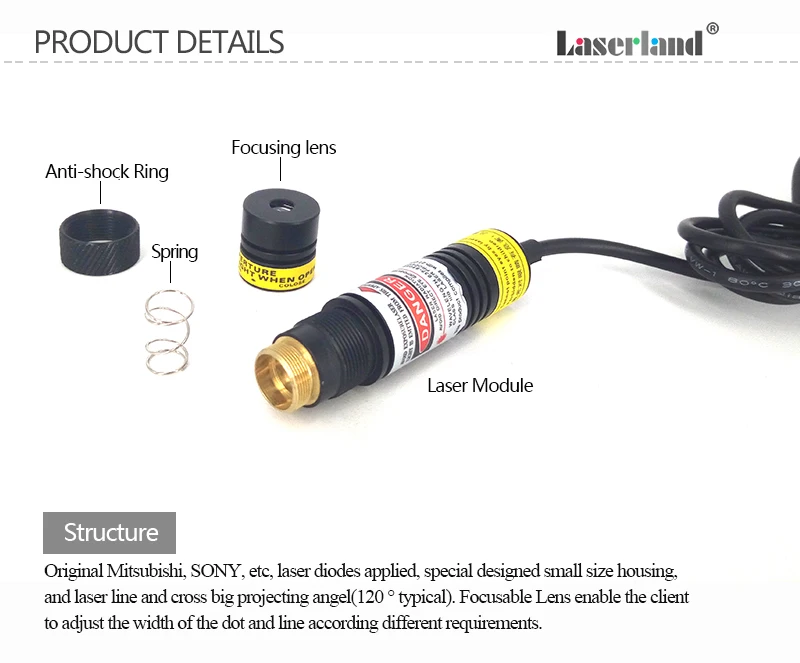

Product Composition: laser tube + metal shell + lens + IC driver board + wire

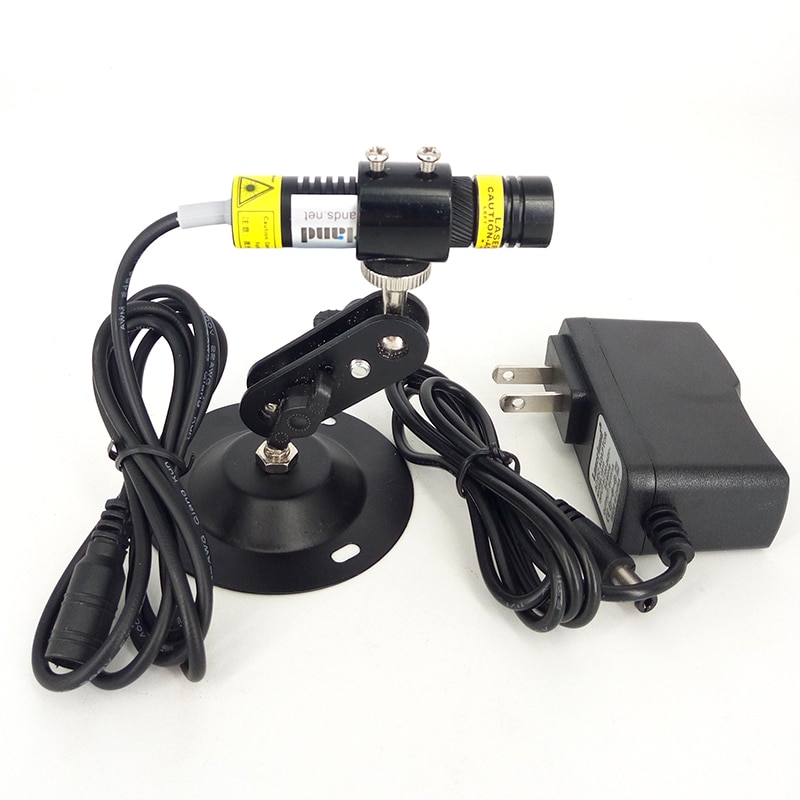

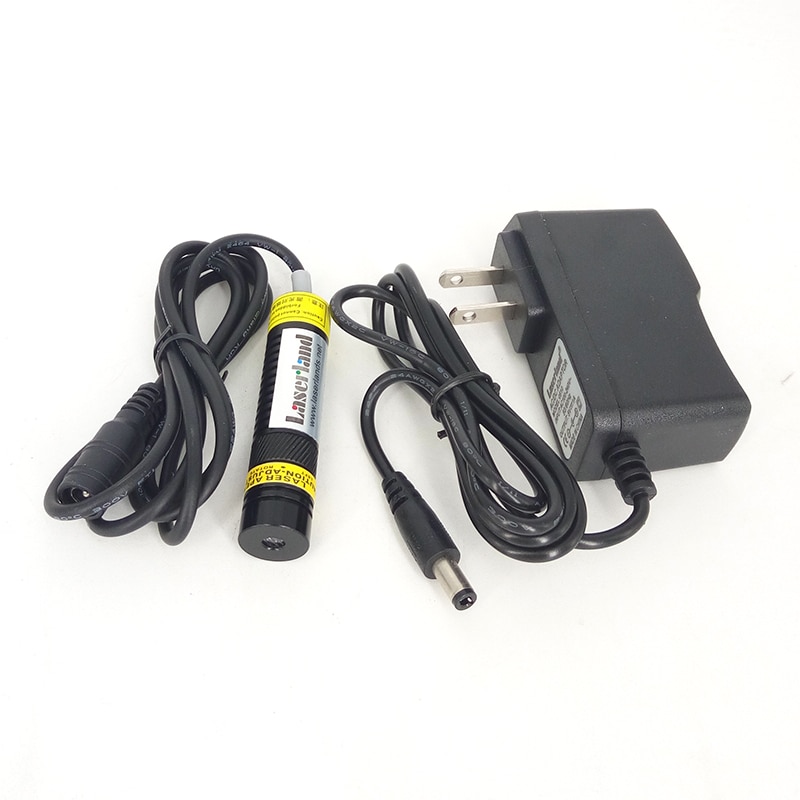

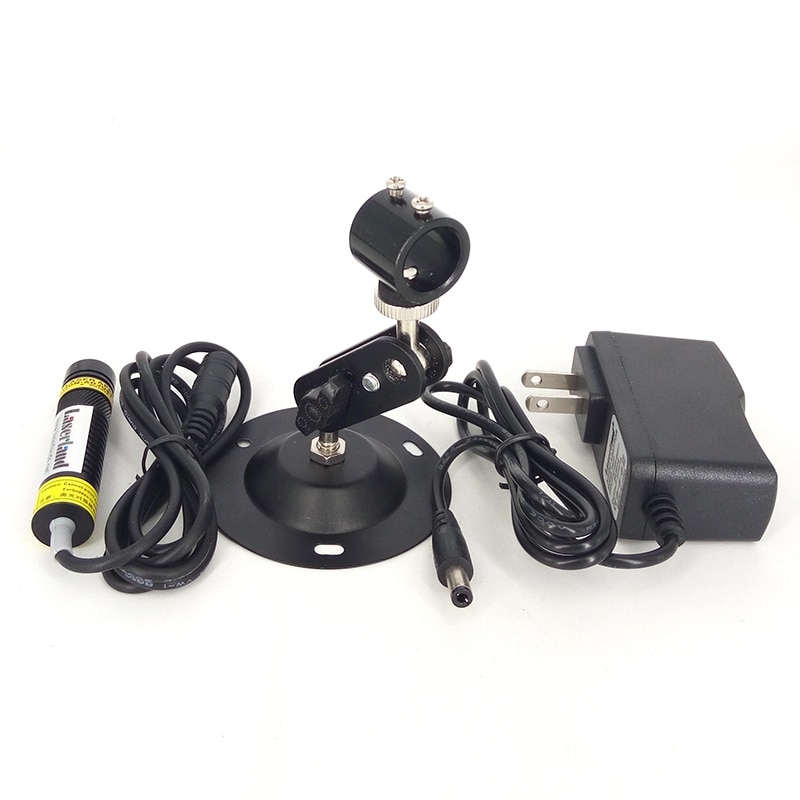

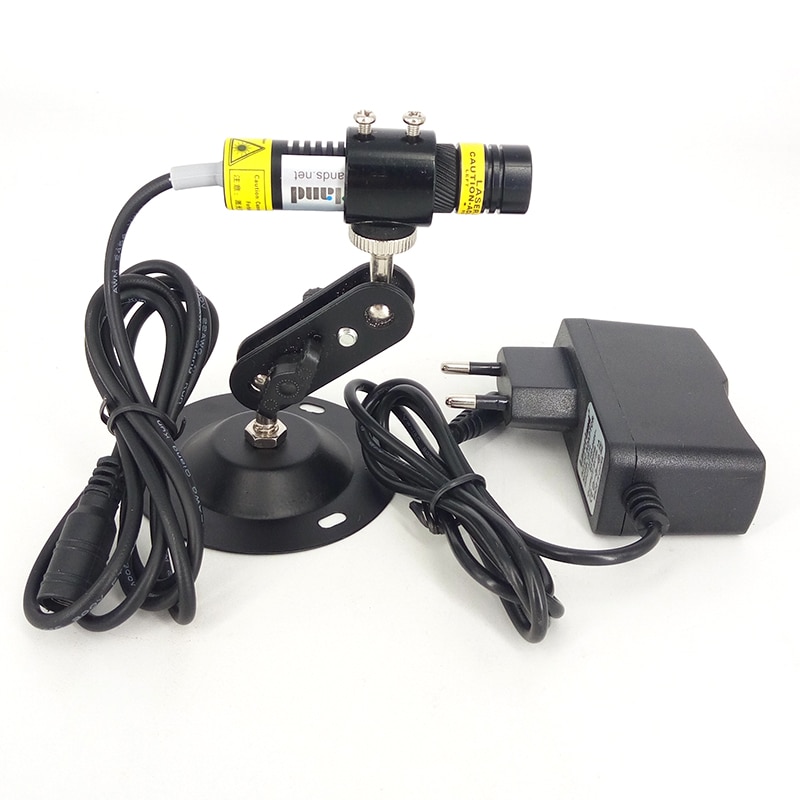

[Package Include]
1 x Laser module
1 x Power adapter
1 x Manual bracket
