Description
1620nm DFB Butterfly Laser 14 Pin Narrow Width Ethylene C2H4 Sensor
Key Features
DFB Laser Chip, Butterfly Package
High Stabilization
Telecordia GR-468-CORE Compliant
RoHS Compliant
Applications
Light Source
Test instrument

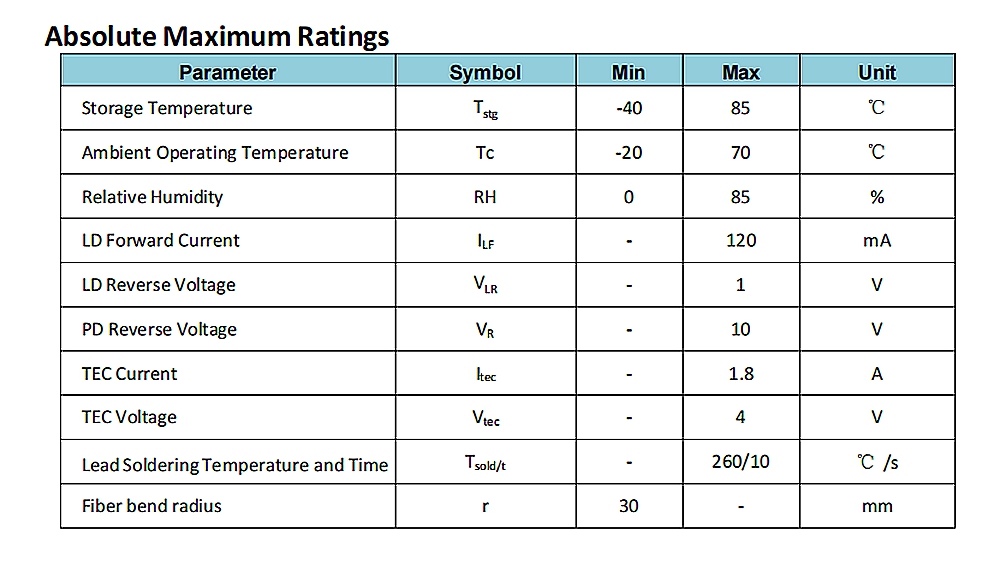

Absolute Maximum Ratings
Storage Temperature: 85C
Ambient Operating Temperature: 70C
Relative Humidity: 85%
LD Forward Current: 120mA
LD Reverse Voltage: 1V
PD Reverse Voltage: 10V
TEC Current: 1.8A
TEC Voltage: 4V
Lead Soldering Temperature and Time: 260/10 C/s
Optical/Electrical Characteristics
Threshold Current: 30mA
Operation Current: 100mA
Monnitor Operation Current: 4000 uA
TEC Current: 1.6A
Thermistor Resistance: 10.5
Peak Wavelength: 1628nm
