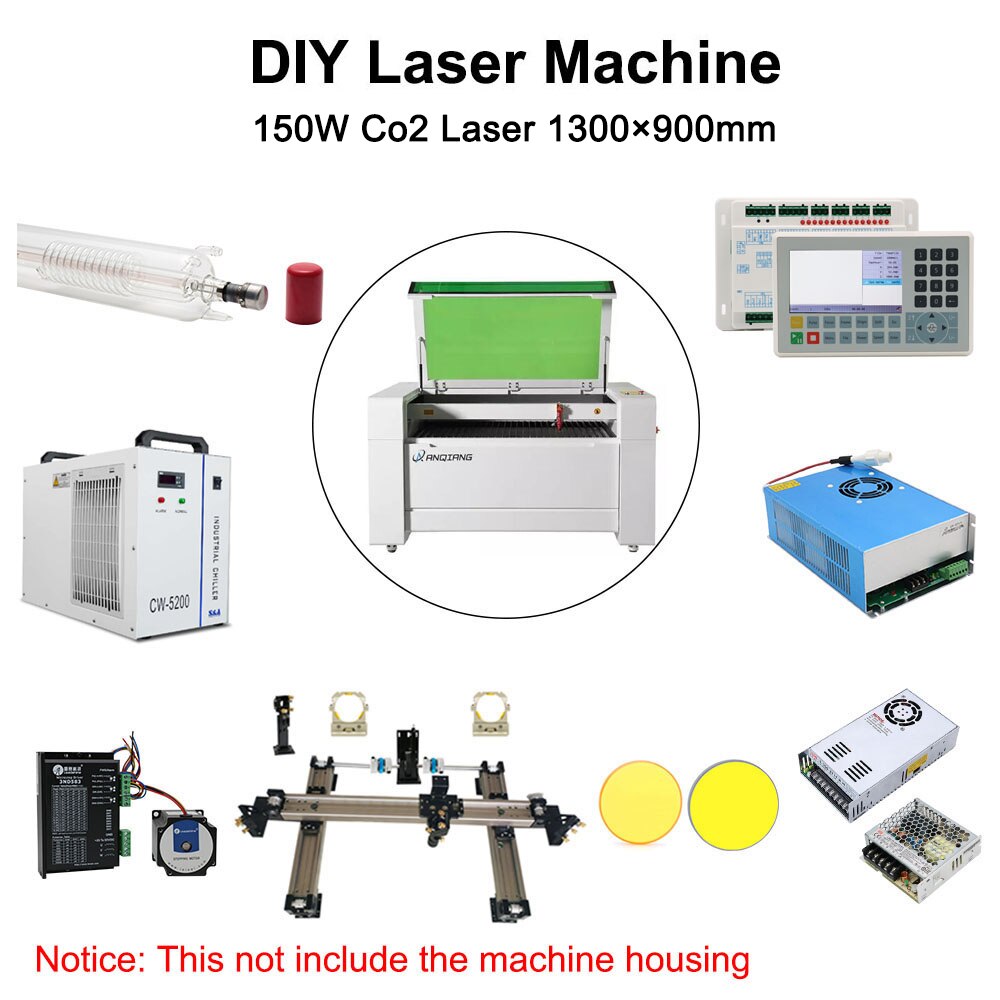

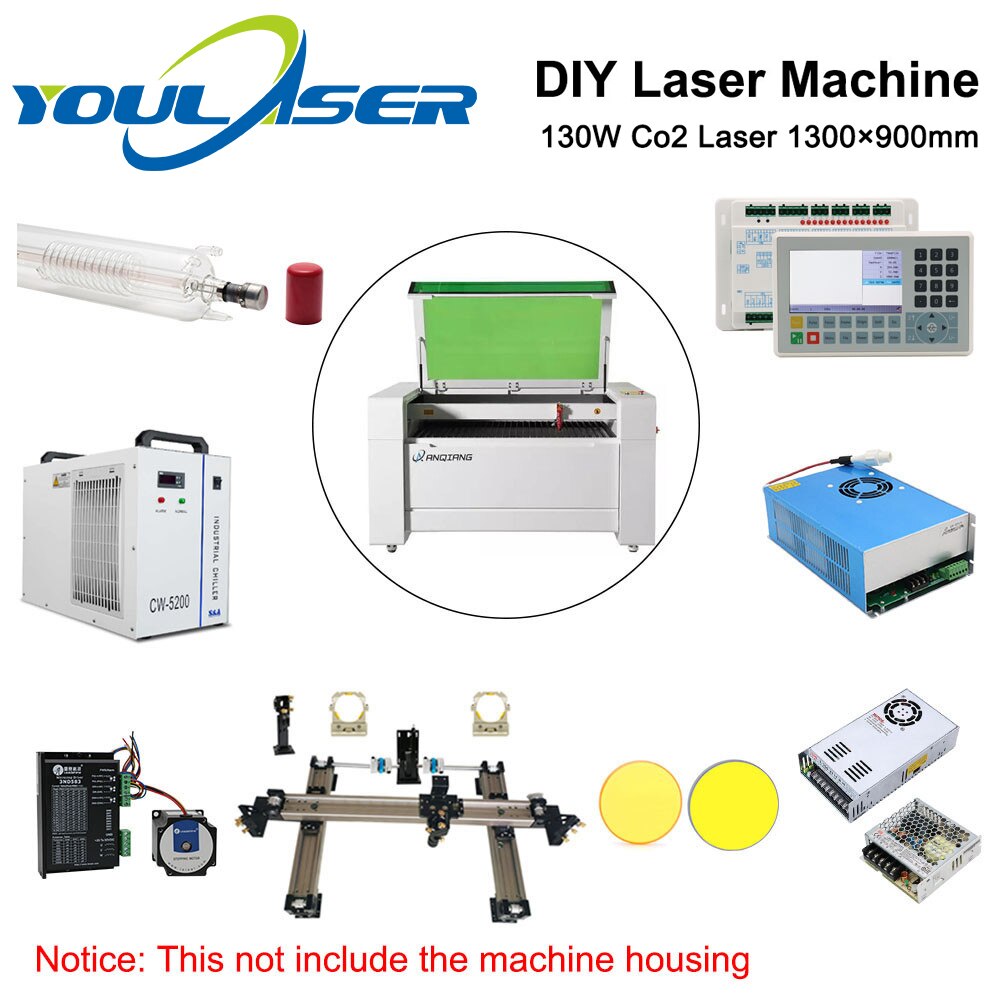

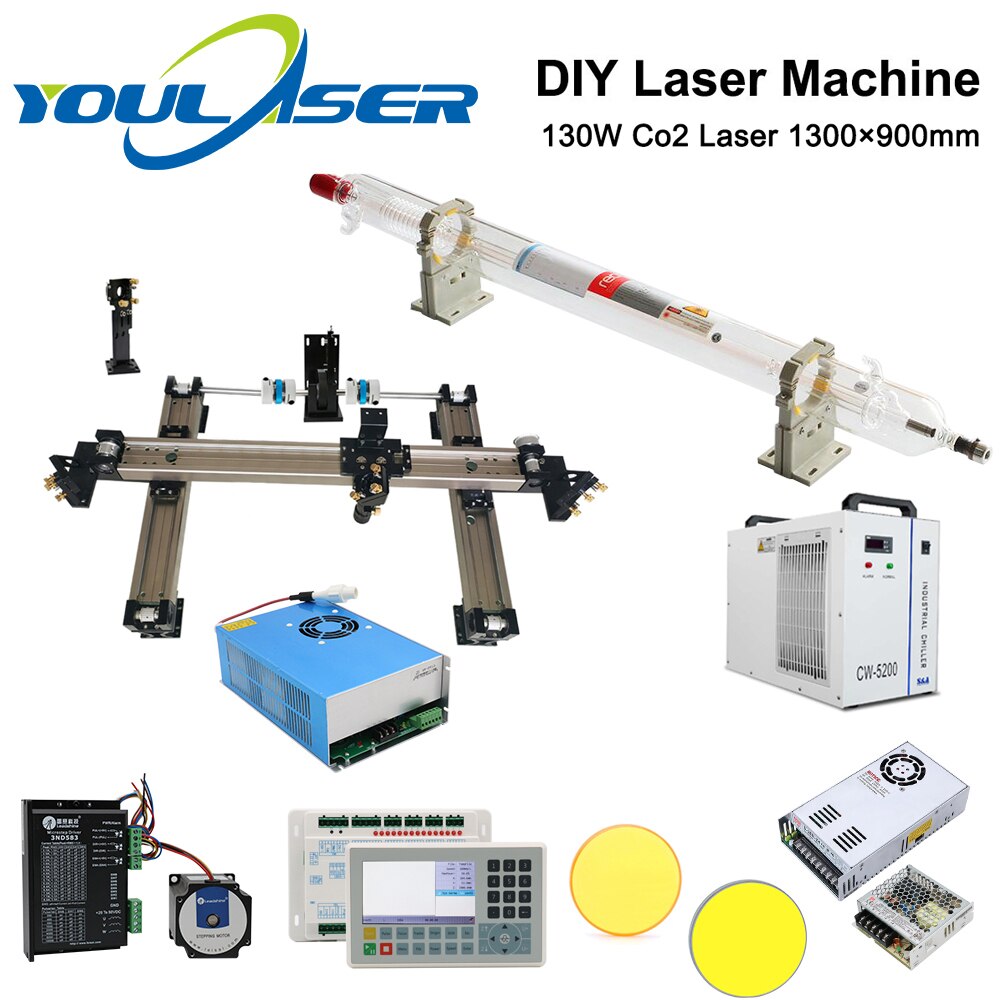

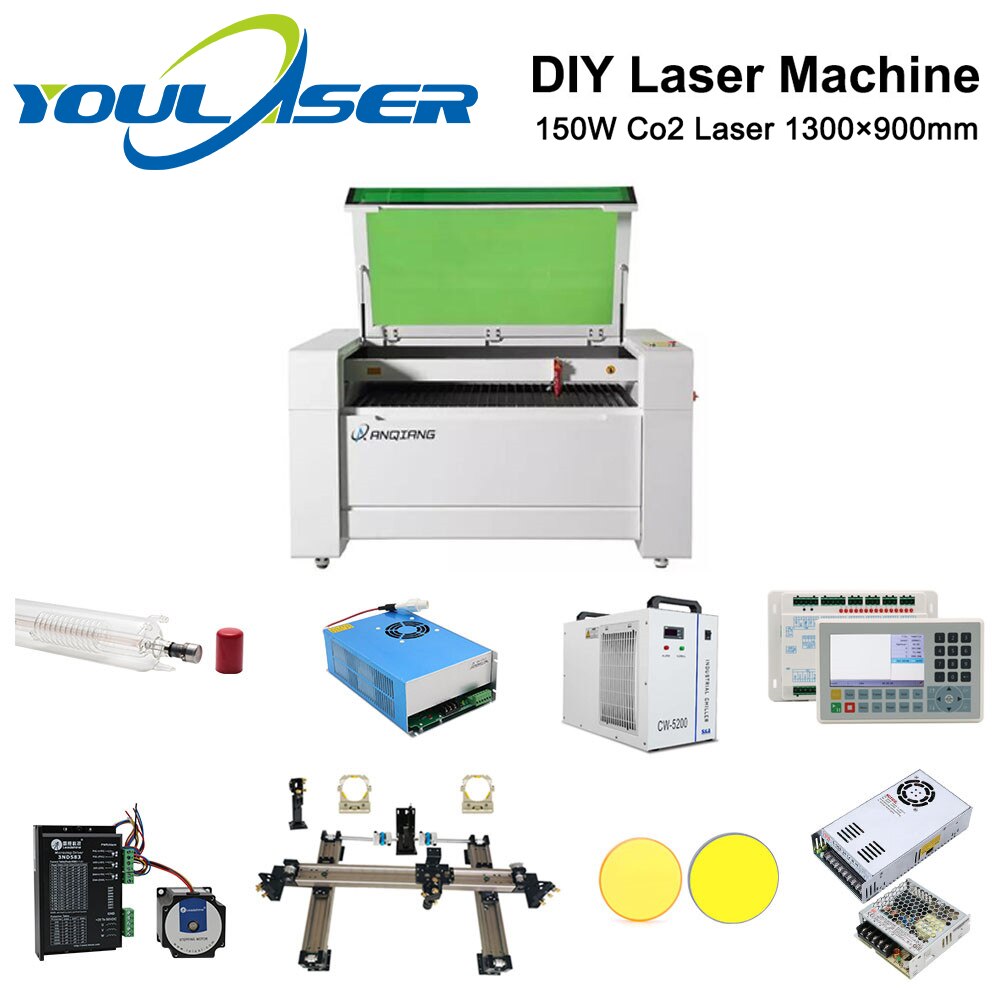

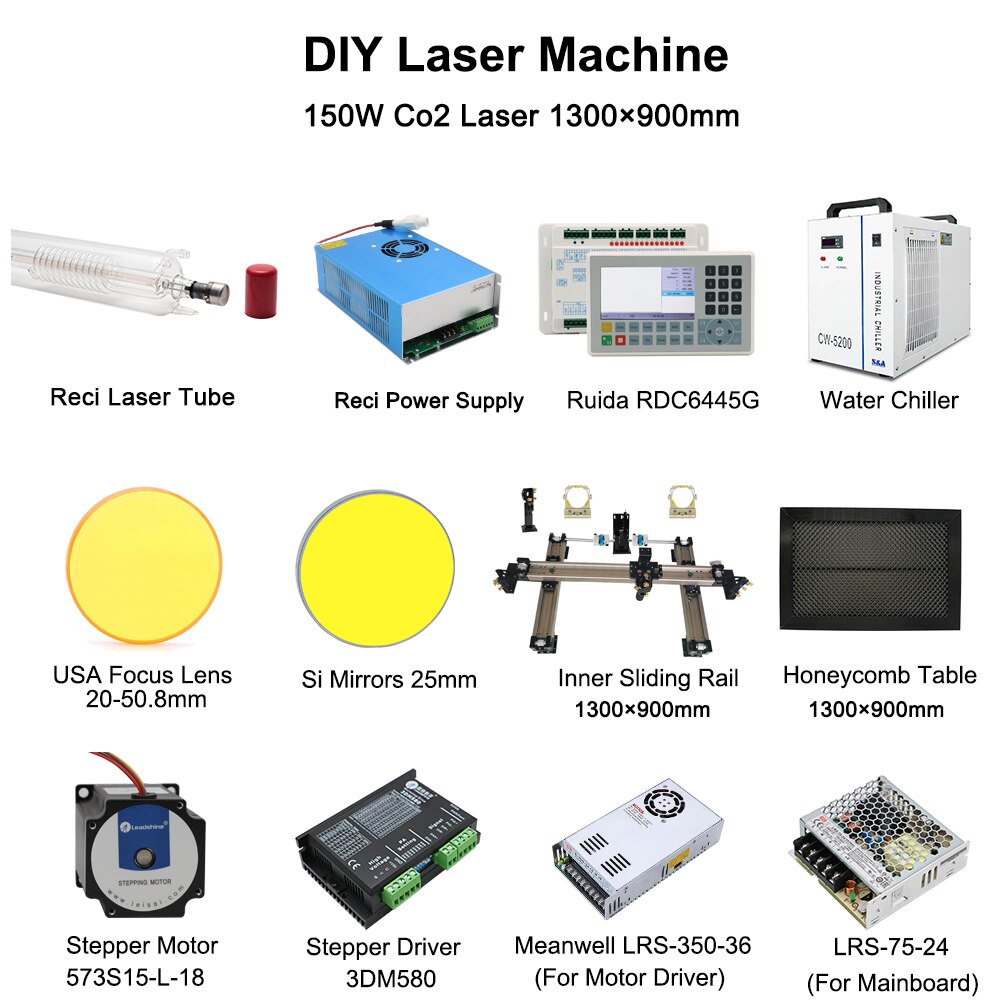

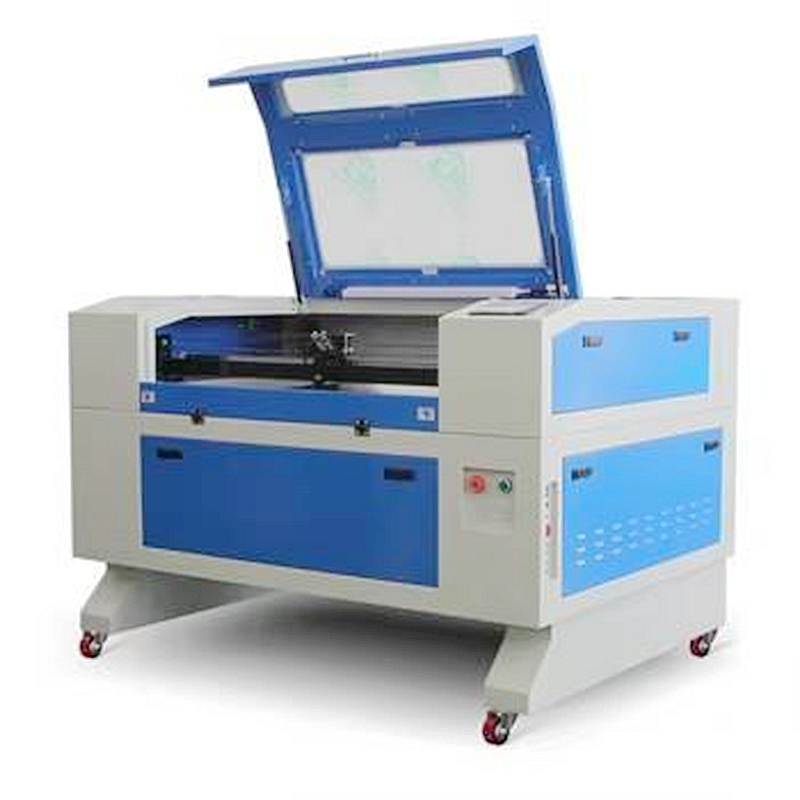

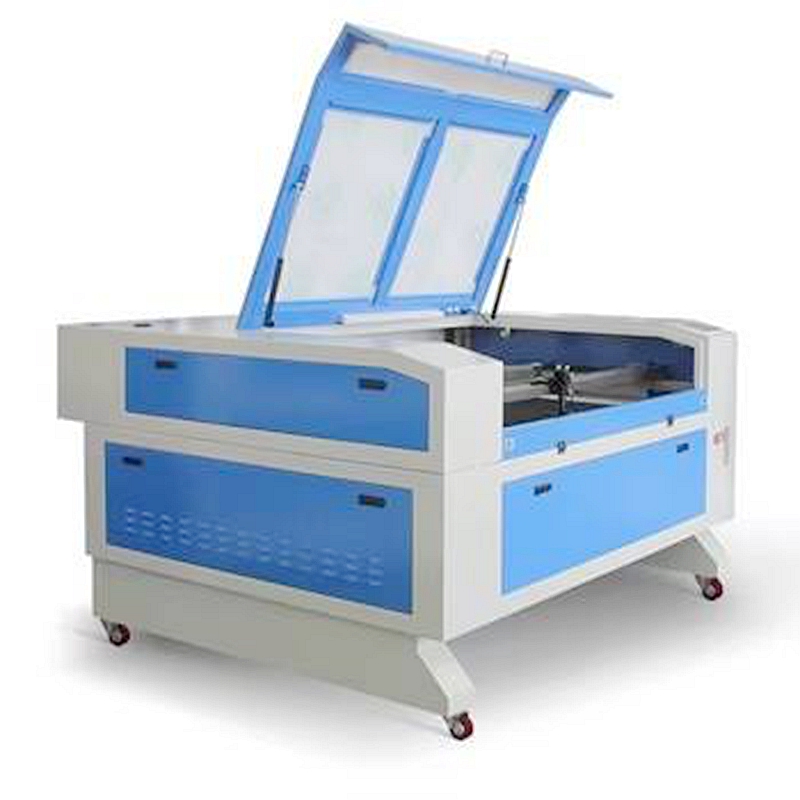

150W 1390 Complete Accessories Co2 Laser Parts Set For Co2 Laser Engraving And Cutting Machine

1.How to assemble a laser cutting machine?

You wil need all the parts to assemble a machine,and the basic knowledge of electronic.

If you want to own a high performance Co2 Cutting & Engraving machine with competitive price,DIY is the best Choice.

What will be needed before you assemble a laser machine?

2.What material do you need to engrave / cut?

Co2 laser machine can be used to cut cloth,wood,bamboo,acrylic,double color plate,leather,plastic and so on,some of Co2 Laser machine can be used to cut steel (High power and Oxygen catalyst).

3.For Co2 Laser machine,what data do i need?

The Most important data is power,according to the material you want to cut,and the speed you need.

Engraving:40-60W is enough for engraving on wood,bamboo and acrylic.

Cutting:80-150W is common power for Co2 Laser cutting machine.More Power can cut thicker material with faster speed.



4.What is the main parts of the Co2 laser cutting Machine?

Laser Tube and Power Supply:
Power Range from 40W to 150W. The power of the laser tube and power supply needs to match.
The power of the power supply can be slightly larger than the power of the laser tube.



5.Co2 Laser Lens & Mirrors:

Diameter 12-38.1mm,focal length 1.5”-5”.the parameters for optics need to match mechanical parts
(laser head&mirror mount).the parameter also depends on the user’s application.



6.Industrial Chiller:

S&A Brand is recommanded for Chiller.

40W: Water Pump.       60W-80W:CW3000.      90-100W:CW5000.       130-150W:CW5200.

7.Laser Controller:

Ruida and Trocen are the recommended brands of the motherboard. Ruida RDC6445G is the latest model.

8.Laser Mechanical Parts.

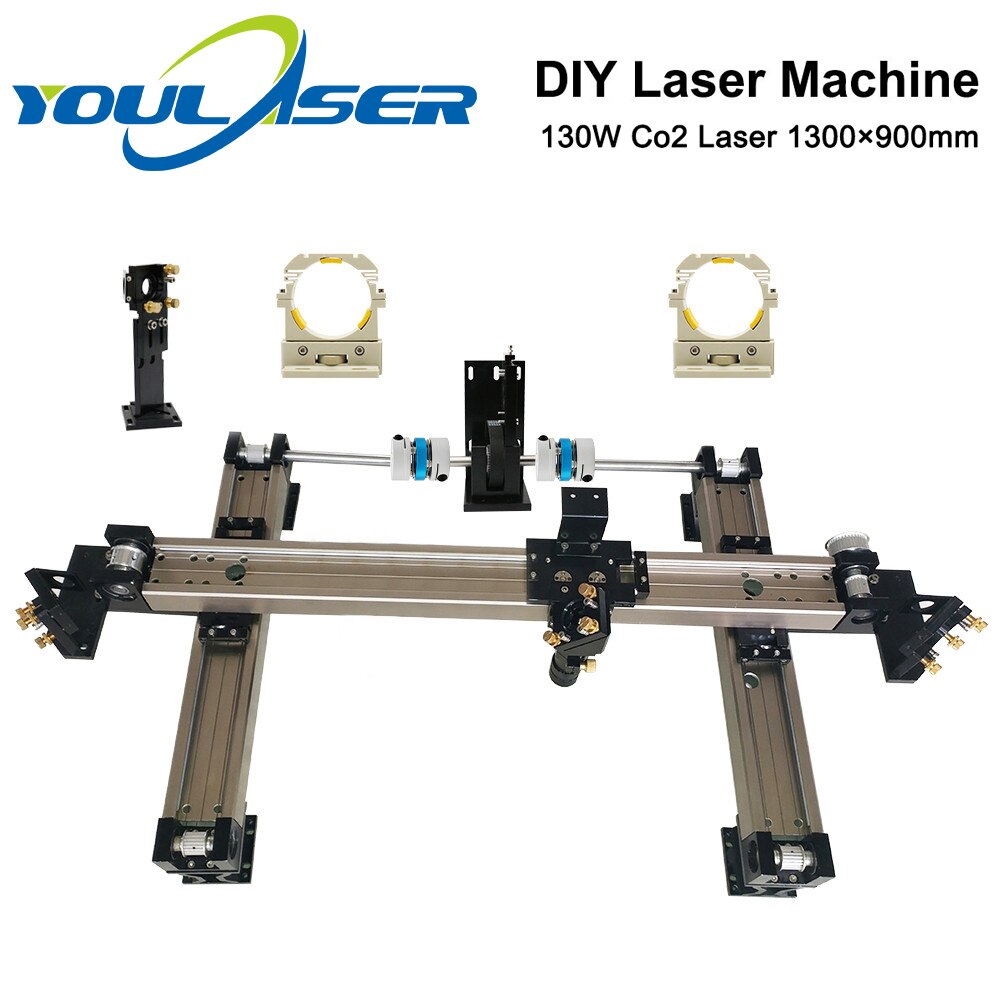

Guide Rail Set:

There are 3 kinds of mechanical parts according to the guige rail difference,inner rail,liner rail,outer rail.

The normal working table size: 6040=600*400,9060=900*600,1390=1300*900,1410=1400*1000,1610=1600*1000
(We can make the rail set as your customized size).
Quantities for laser head:1-4Pcs (General Configuration 1Pcs)



9.HTD3M-15 Timing Belt:

6040 L:6M         9060 L:8M        1390 L:10M        1410 L:11M        1610  L:11M

10.Cable Chains (X Axis ) 10×15 R28:

6040 L:1M       9060 L :1M      1390 L:2M       1410 L :2M        1610  L:2M

11.Cable Chains (X Axis ) 15×30 R28:

6040 L:1M       9060 L :1M      1390 L:1M       1410 L :2M      1610  L:2M



12.Stepper Motor & Driver:

You need to use 2 Pcs stepper motors and 2 Pcs motor drivers,one is for X axis and another one is for Y axis.

For working size 6040-1610,Leadshine 3DM580 and 573S09-L are recommanded.For X axis;Leadshine 3DM580 and 573S15-L are recommanded for Y axis.
