Description
1310nm 20mW DFB Butterfly Modules with PM Optical Fiber
Key Features
DFB Laser Chip, Butterfly Package
High Stabilization
Telecordia GR-468-CORE Compliant
RoHS Compliant
PM Optical Fiber
Applications
Light Source
Test instrument

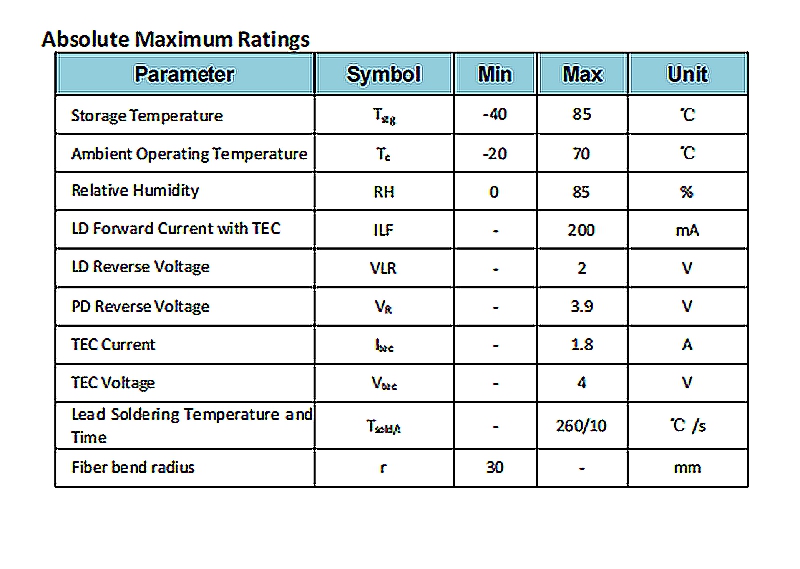

Absolute Maximum Ratings
Storage Temperature: 85C
Ambient Operating Temperature：70C
Relative Humidity: 85C
LD Forward Current with TEC: 200
LD Reverse Voltage: 2
PD Reverse Voltage: 3.9
TEC Current: 1.8
TEC Voltage: 4
Leading Soldering Temperature and Time: 260/10

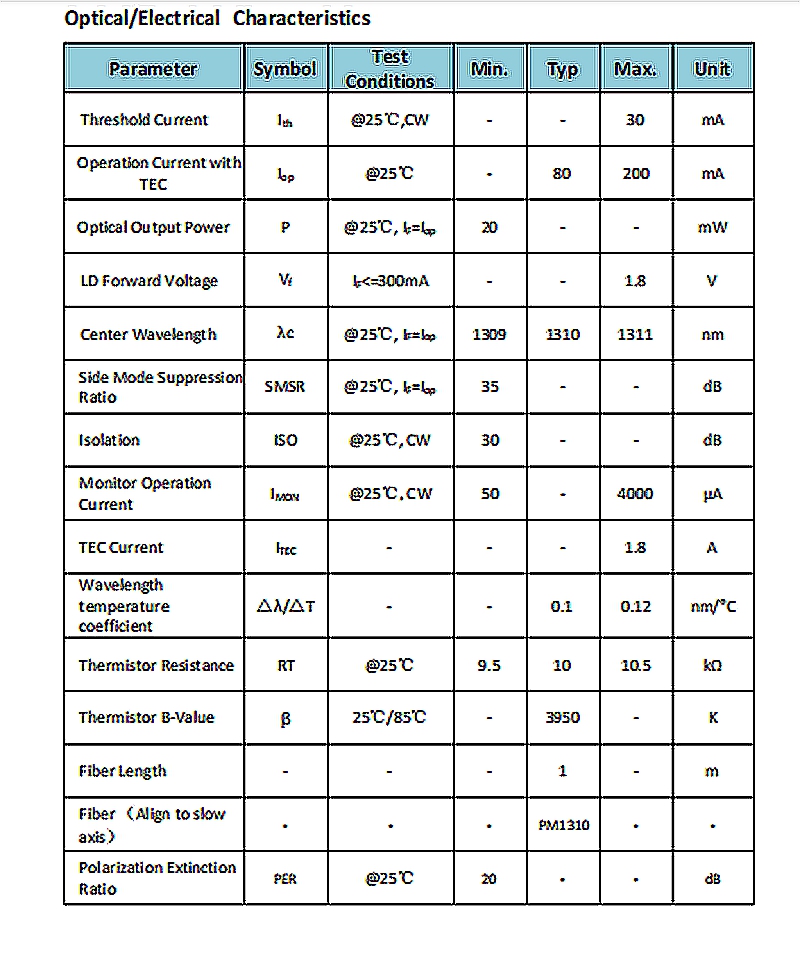

Optical/Electrical Characteristics
Threshold Current: 30C
Operation Current with TEC: 200
LD Forward Voltage: 1.8
Center Wavelength: 1311
Monitor Operation Current: 4000
TEC Current: 1.8
Wavelength temperature coefficient: 0.12
Thermistor Resistance: 10.5
1309nm-1311nm +1310nm+20mW+DFB+Butterfly+Modules+with+PM+Optical+Fiber+
