Description

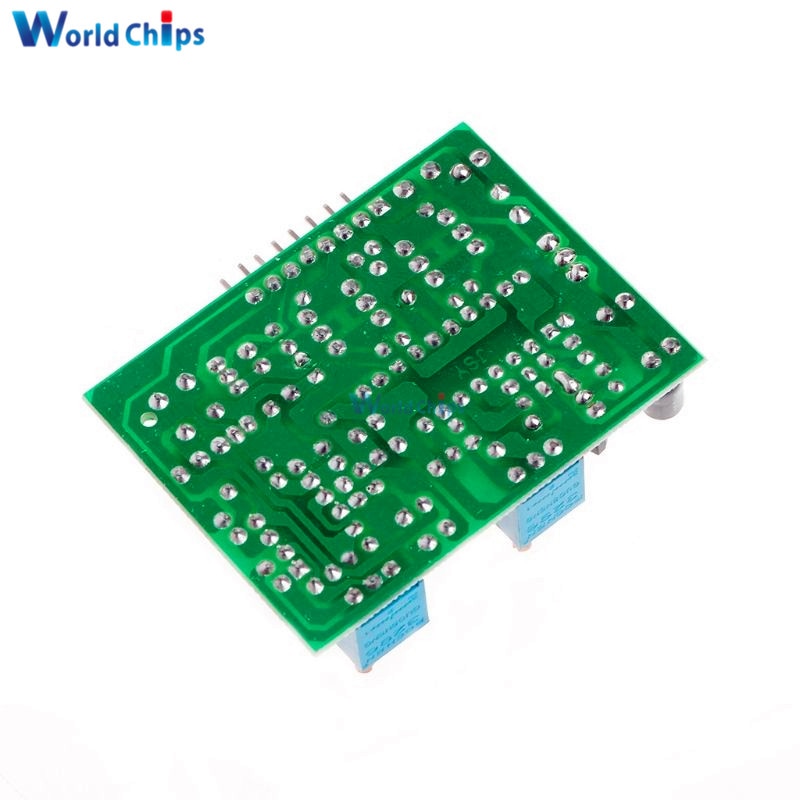

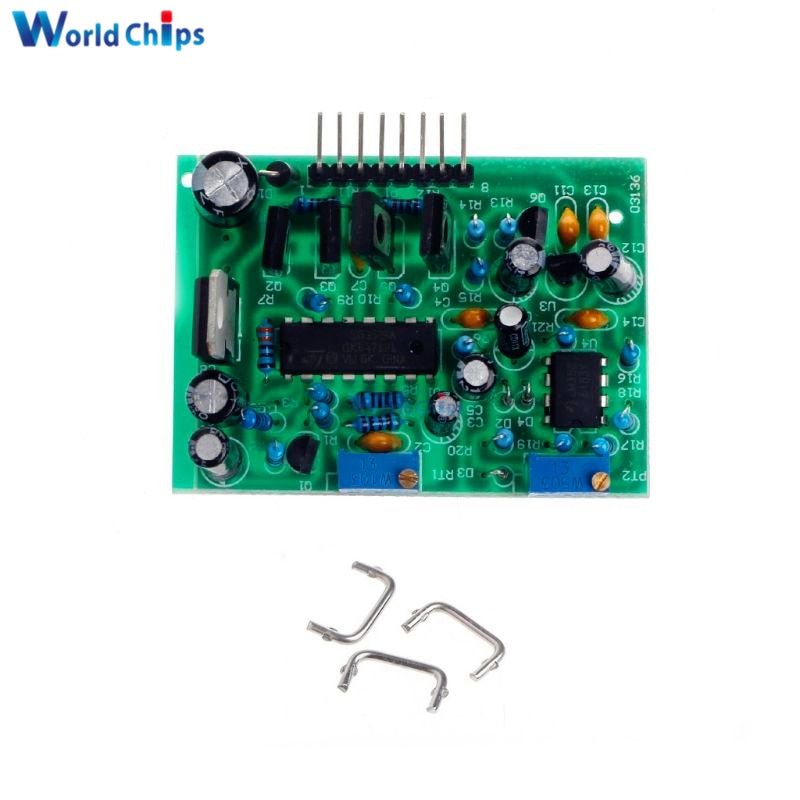

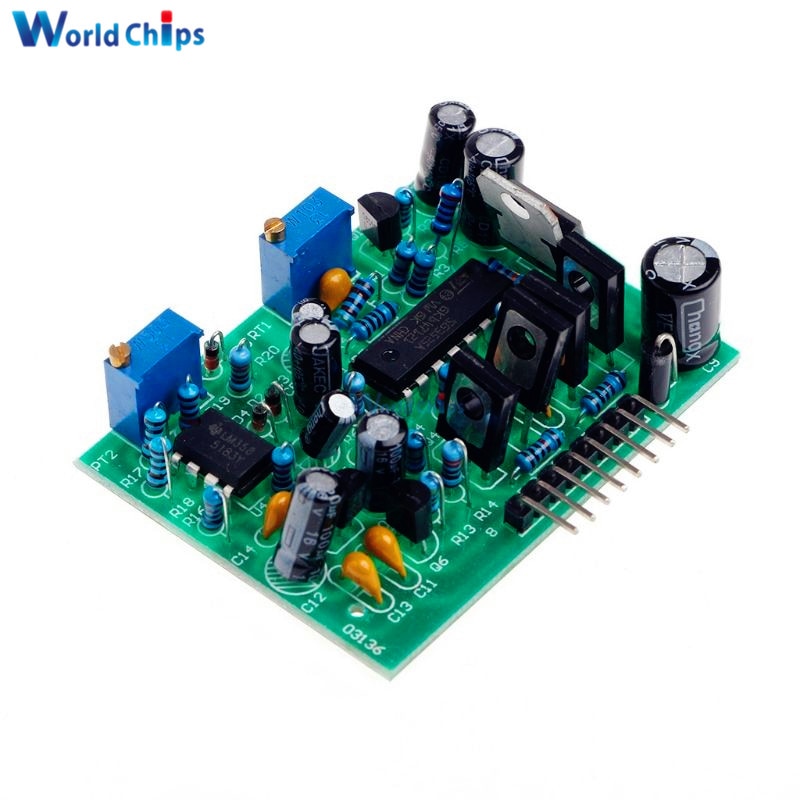

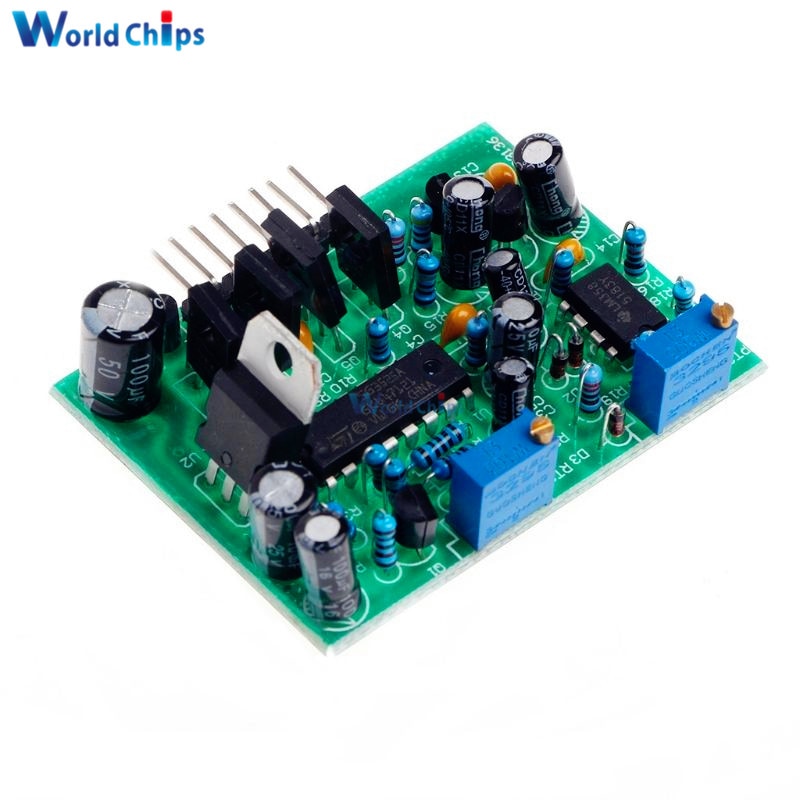

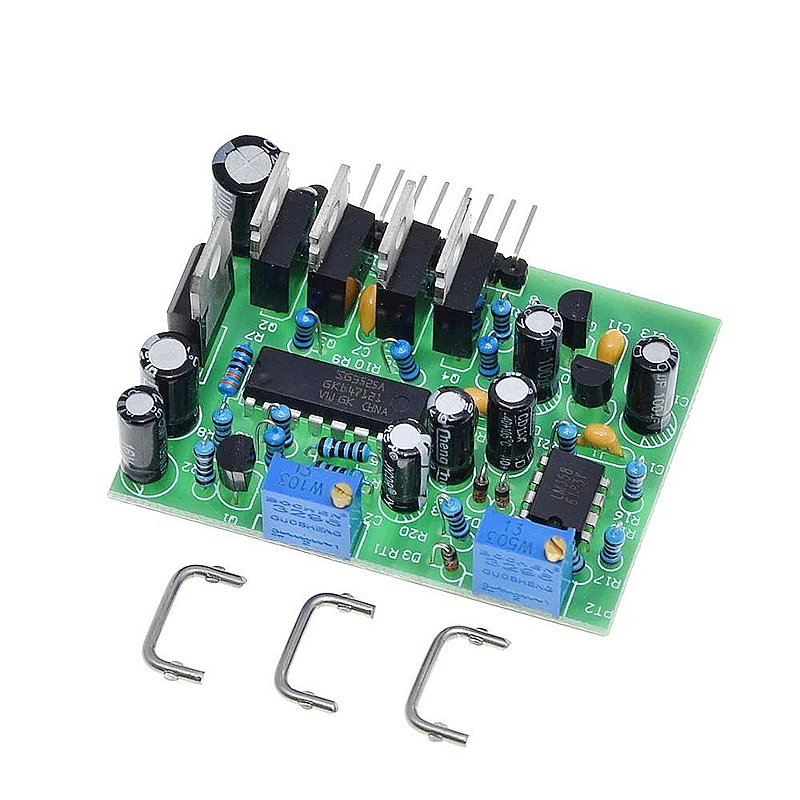

13-40KHz Inverter Driver Board SG3525 LM358 High Current High Frequency Adjustable DC 12-24V Driving 5000W
- Type: Voltage Regulator
- Dissipation Power: 5000W
- Model Number: SG3525
- Application: Other
- Operating Temperature: standard
- Supply Voltage: DC 12-24V
Description:
100% brand new and high quality.
Specifications:
1.Voltage Range:12-24V
2.Power Transposition Protection
3.Preceding Stage Overcurrent (short circuit) Protection
4.Backing Stage Overcurrent (short circuit) Protection,adopt locking protection
ie:after protection,it needs to loosen driving power switch;push again,there will be driving signal output
5.Frequency Range:13KHz-40KHz
6.High Power TO-220 output(can drive 5000W motor)

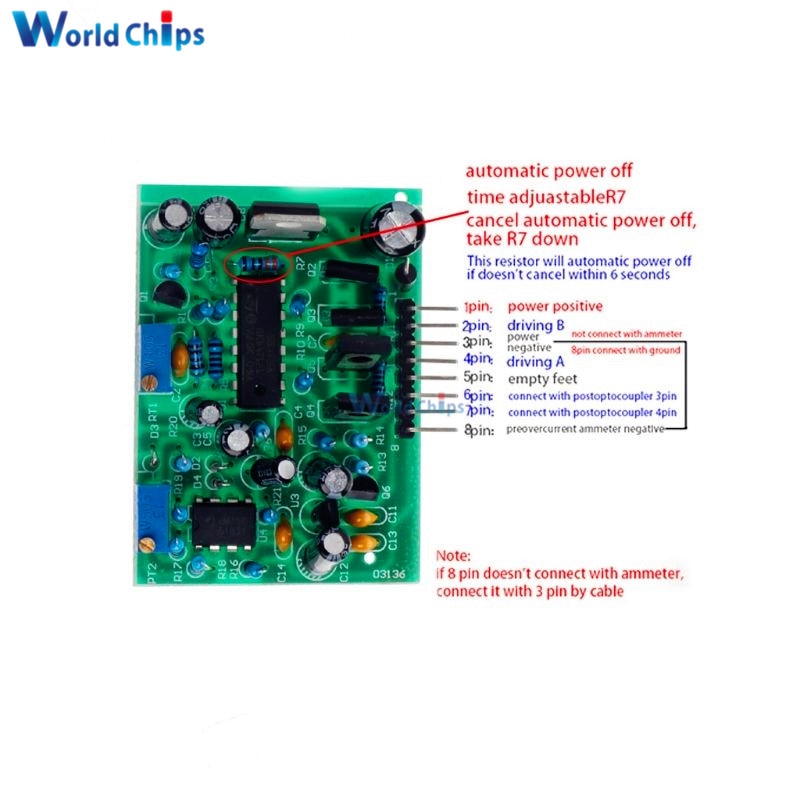

7.6s Automatic Power Off Function,and it will effectively protect human body( time can be adjusted with R7, remove the R7 to cancel the automatic OFF function)
8.Chip:SG3525

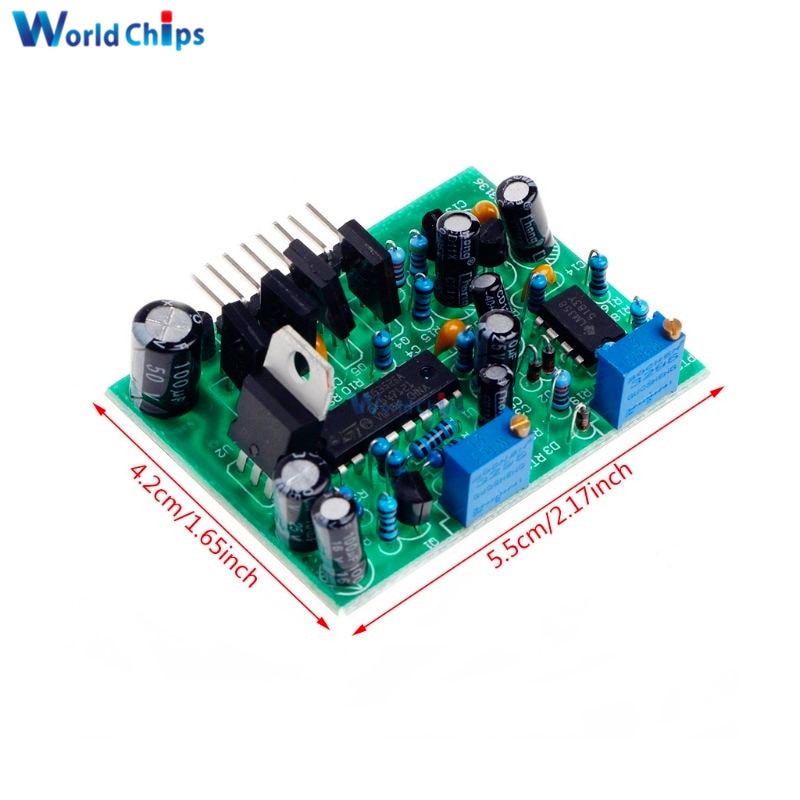

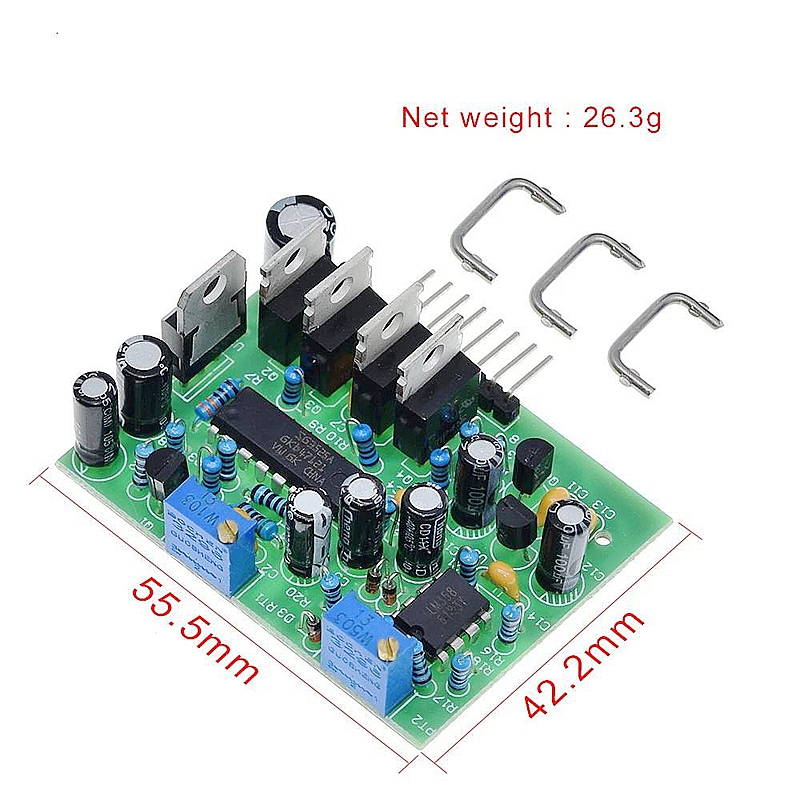

Size: 5.5×4.2cm/2.17×1.65inch
Quantity: 1 Pc
Note:
1.Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 Pc x Inverter Driver Board
