12 bar soprano xl laser hair removal 808nm diode hair removal alma laser repair soprano xli laser

$3,990.00

SKU: 4001012994188 Category:

Description

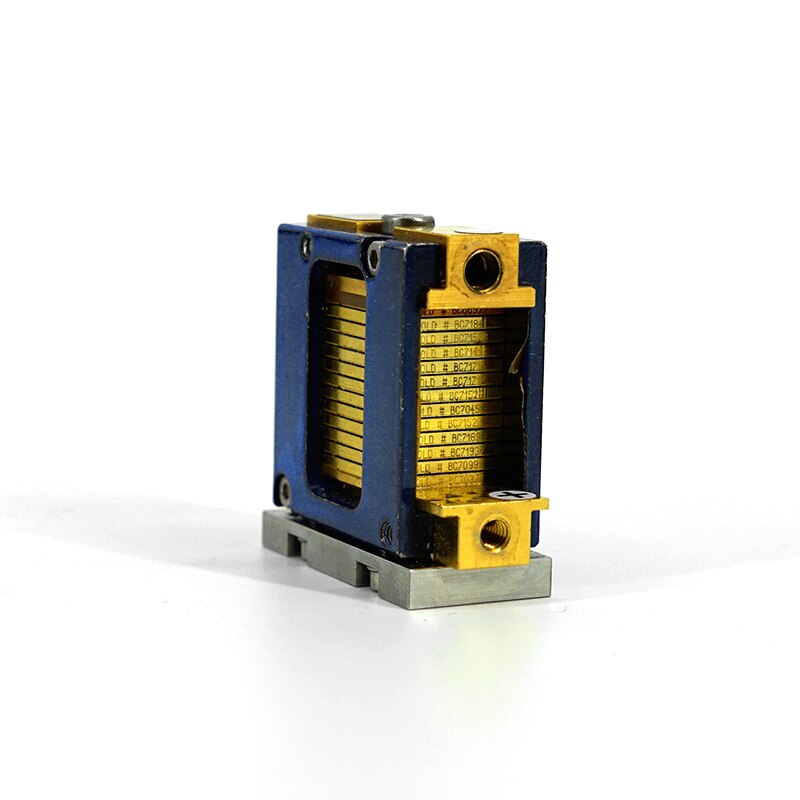

12 bar soprano xl laser hair removal 808nm diode hair removal alma laser repair soprano xli laser

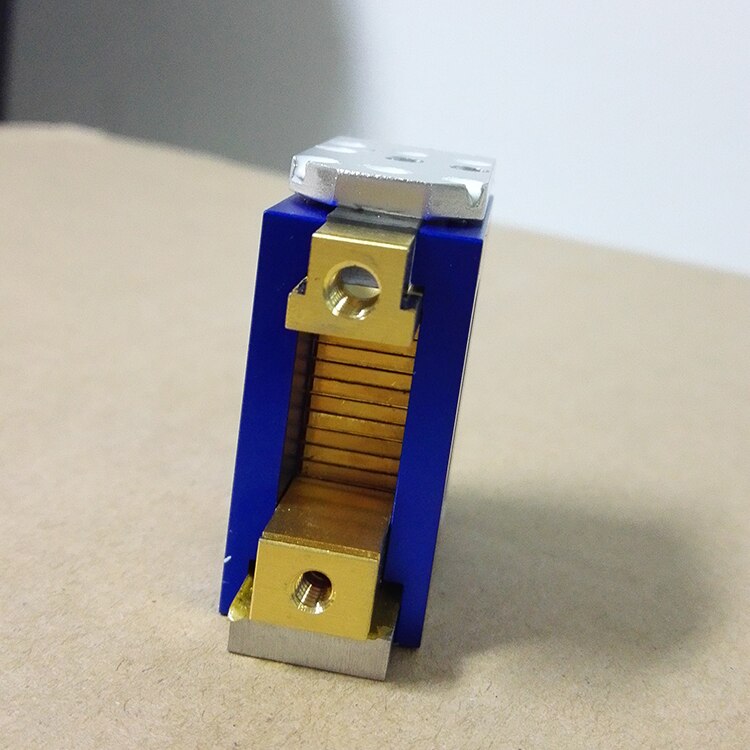

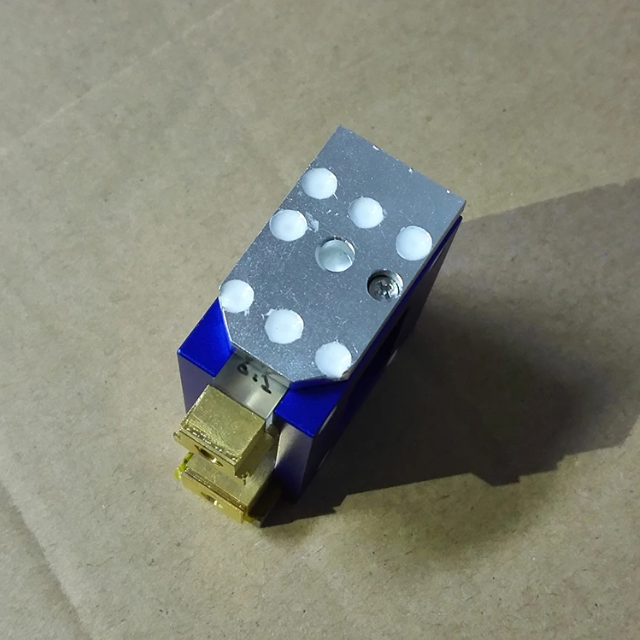

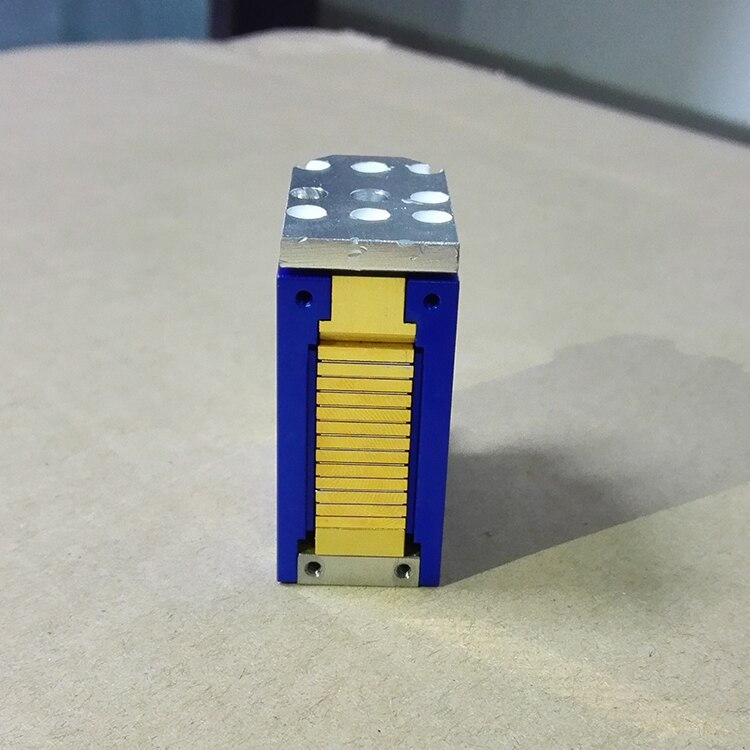

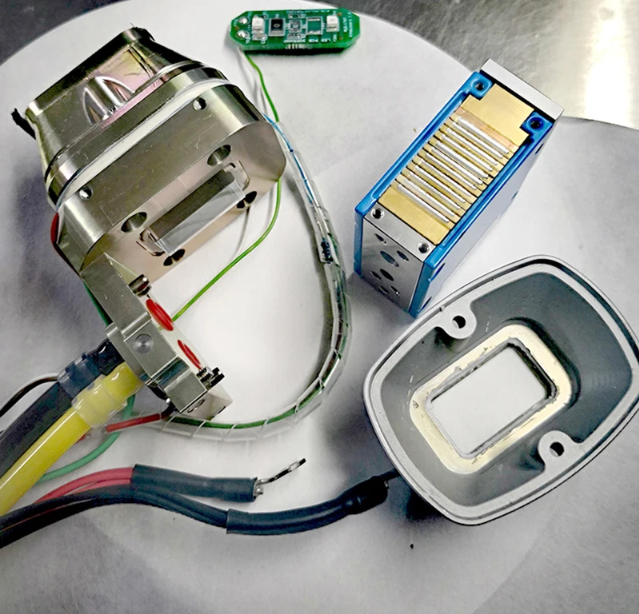

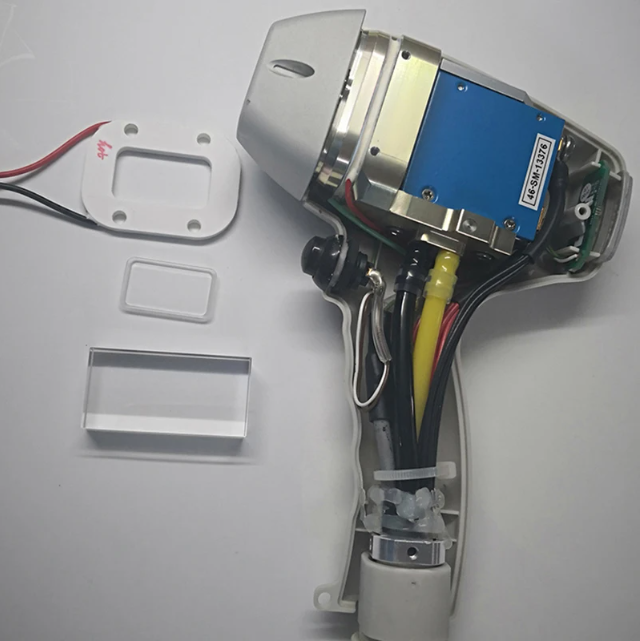

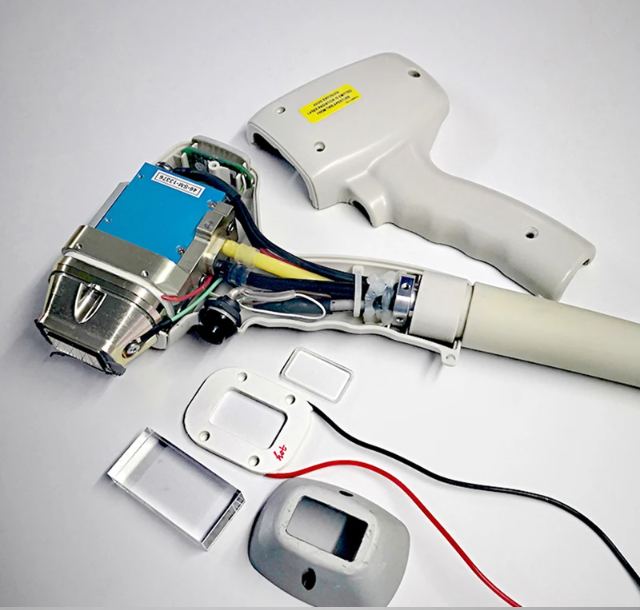

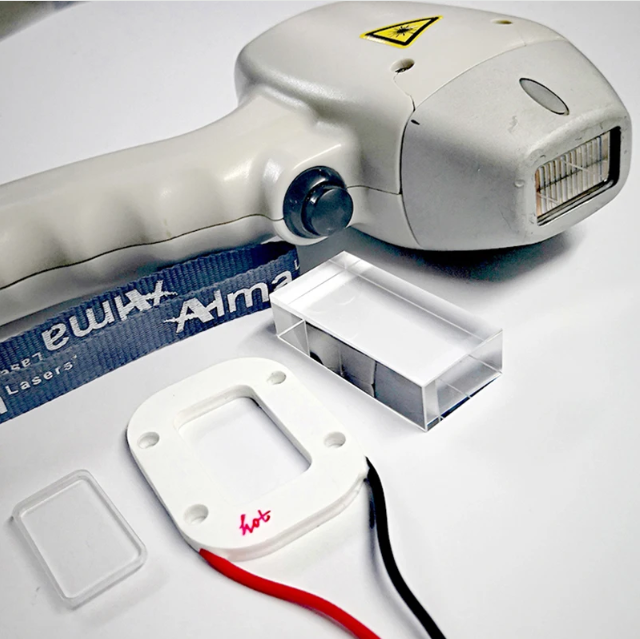

1. Customer’s old (repaired) products





2.Specifictations

Model NO. VS-MI-808-100-12-Alma
Application Alma soprano handle piece repair and replacement
Function Hair removal, Skin rejuvenation
Central wavelength at 25℃ 808±5nm
Laser bar Germany Jenoptik bar
Laser stack type Micro channel cooled vertical diode laser stack
Operation mode CW
Laser power 1200W
Per bar power 100W
Bars number 12 pieces
Maximum operating voltage 24V
Fast axis divergence (FWHM) No
Slow axis divergence (FWHM) No
Typical pitch per bar 1.8mm
Expected lifetime >10000 hours
Cooling system

Micro channel cooler + Water + TEC



Water cooling condition 1.Flow rate: 0.3L/min ±10% / bar
2.water temperature: 15~25℃
3.Water quality: Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm
4.Cooling: Don’t use any material that combined with copper, that would form galvanic elements

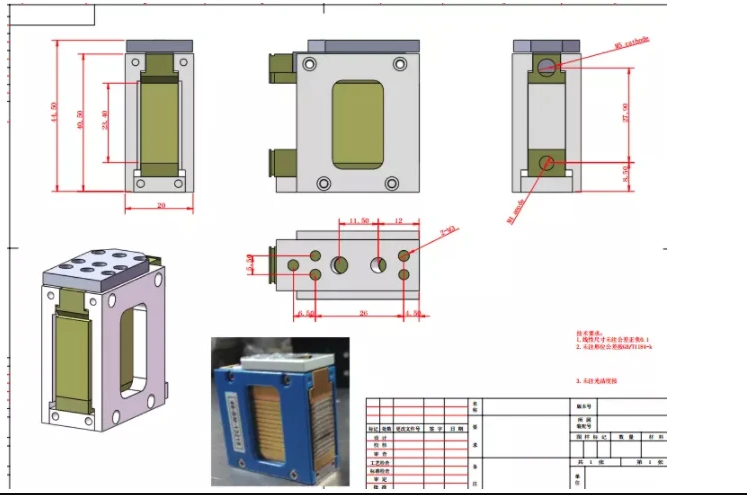

3.Dimention

-6

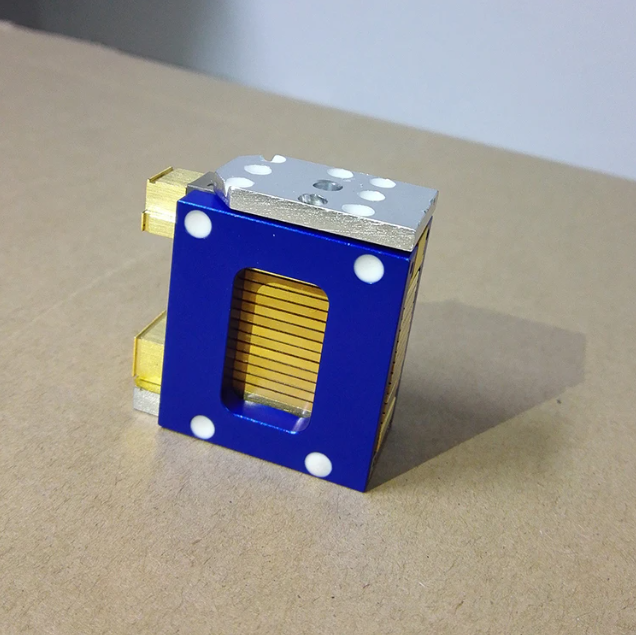

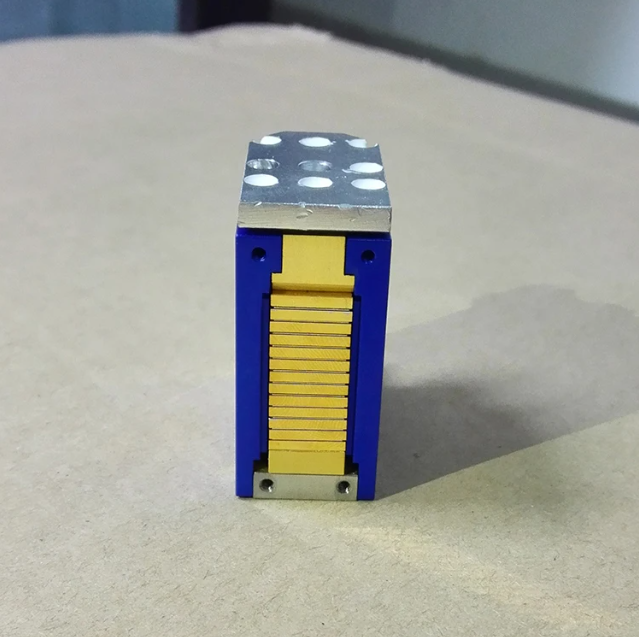

4.After produce new diode laser stack / update / repair

5.Production test display



6 .Product Description

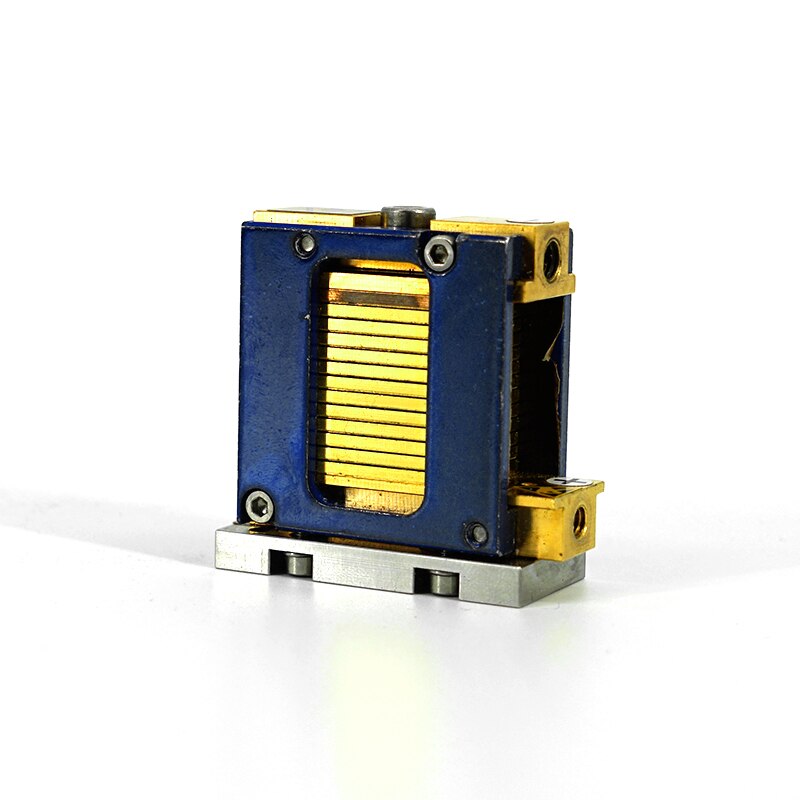

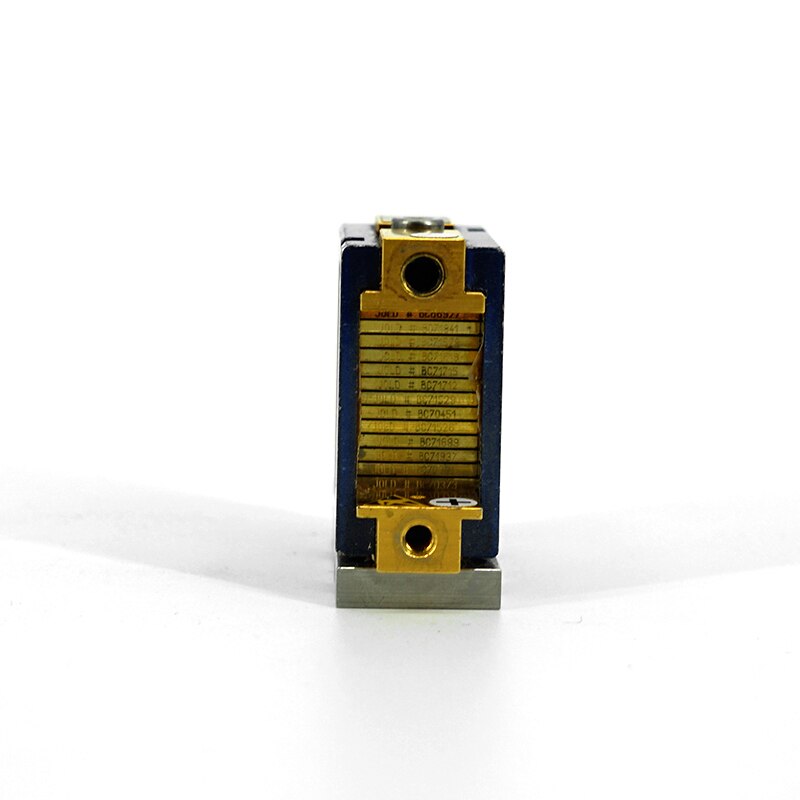

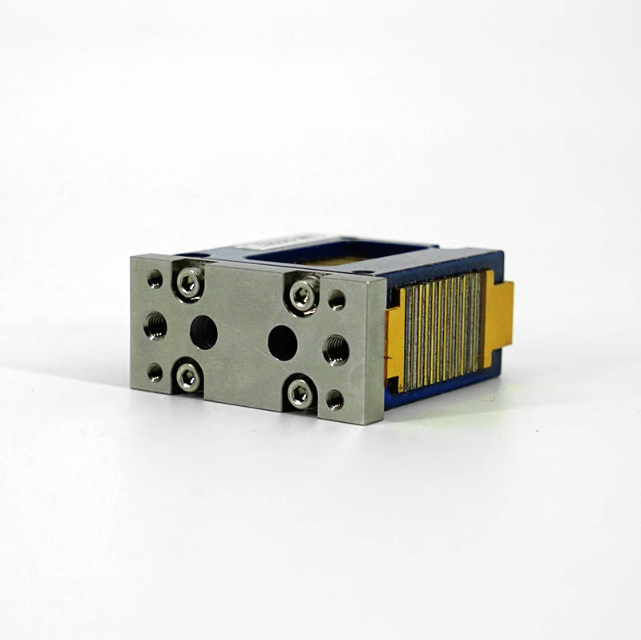

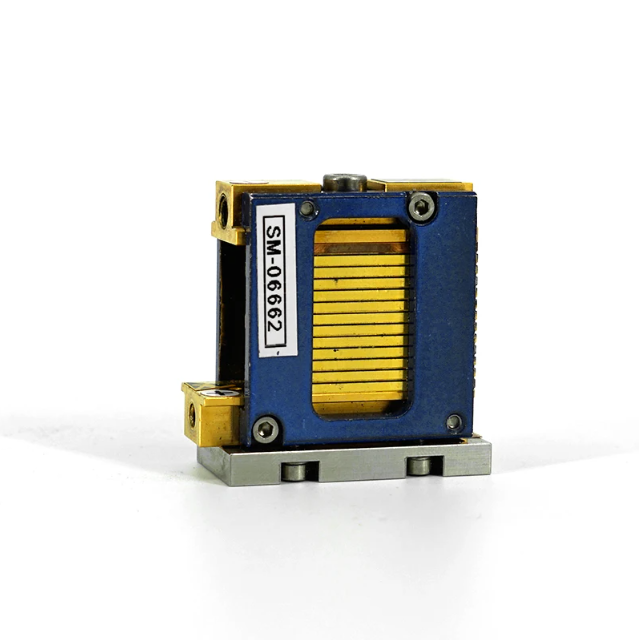

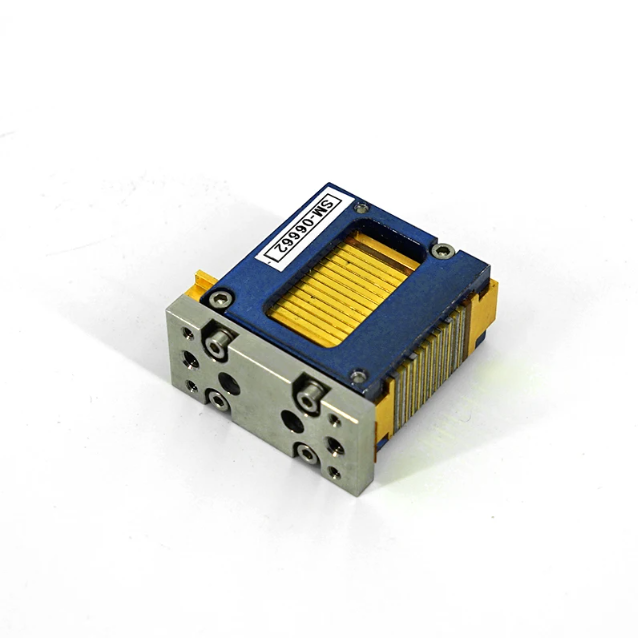

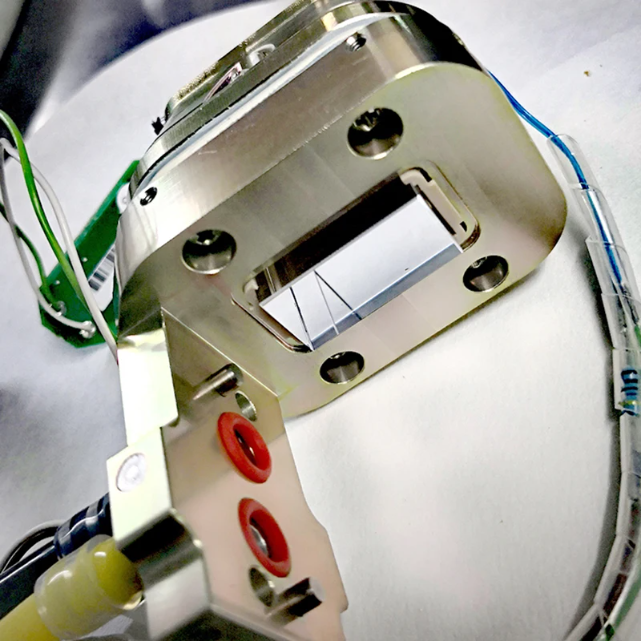

This diode stack is Alma Soprano 12 bar diode stack.It is used for Alma Soprano handle piece repairing and replacement.Oriental-laser focused on diode laser bar assembling for more than 16 years and we have seen various alma soprano diode laser stacks.Also we can use the same Jenoptik bar like Alma used to recondition the power the laser soprano power.

(1)Features
>Diode laser bar from Jenoptik
>Micro channel cooler Germany imported >lifetime: over 10000 hours
>Special design for Alma Soprano diode laser machine

(2)Advantages

1.Oriental-laser with more than 16 years diode laser bar mounting experience
2.Unique gold coating technology with high reliability and stability

3.Customized mechanical part size, dimensions,optional output power and wavelength
4.Refurbishment and repair service for any other diode laser brand Syneron,Dilas etc.

(3)Application

Specially design for repairing alma soprano XL handle or replacement of the same series handle

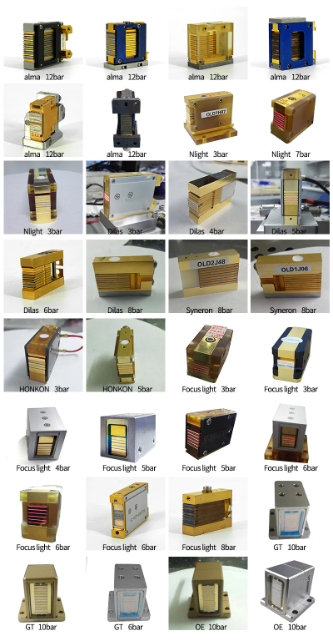

7.Other diode laser bar stack/handle
