Description
532nm-100 green diode laser module with TTL 0-30kHz and cooling fan+ long working time DC12V
Features:
Wavelength: 532 nm
Laser shape: point
Cooling method: fan cooling
Modulation frequency: TTL 0-30K Hz
Working method: Continuous work
Color: Black
Material: Aluminum
Circuit control: constant control
Reverse polarity protection: Yes, automatically recognizes positive and negative
Working voltage: CC=12 V
Working current: i<500 mA
Preheating time: None
Working temperature: -10 ° C to+40 ° C
Storage temperature: -10 ° C to+40 ° C
Structure: Laser diode+lens+cooling housing
Laser module size: 74 x 30 x 30 mm
Circuit board size: 71.5 x 35 x 20 mm
Note:

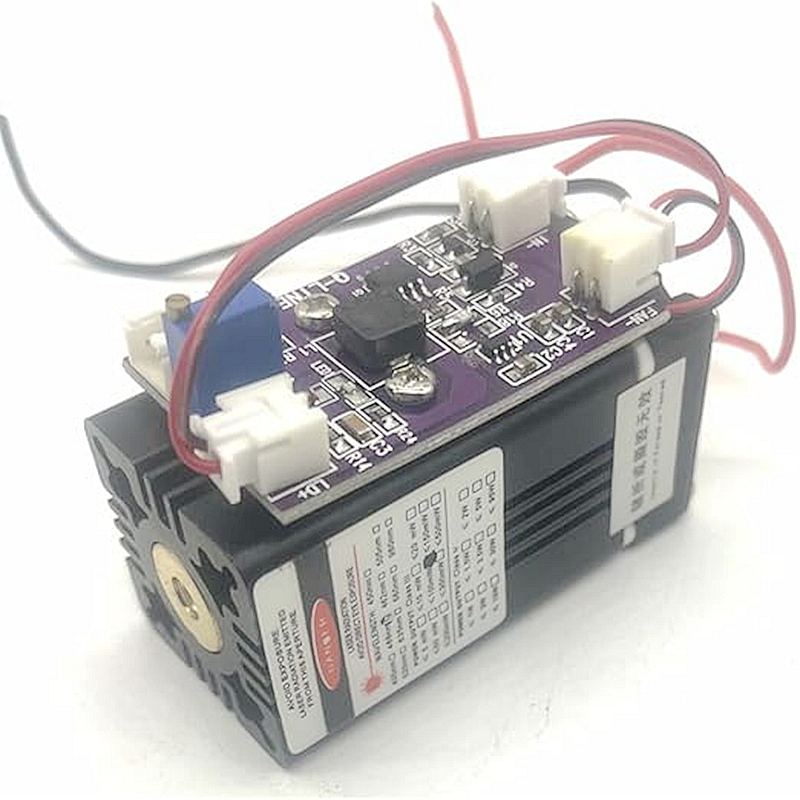

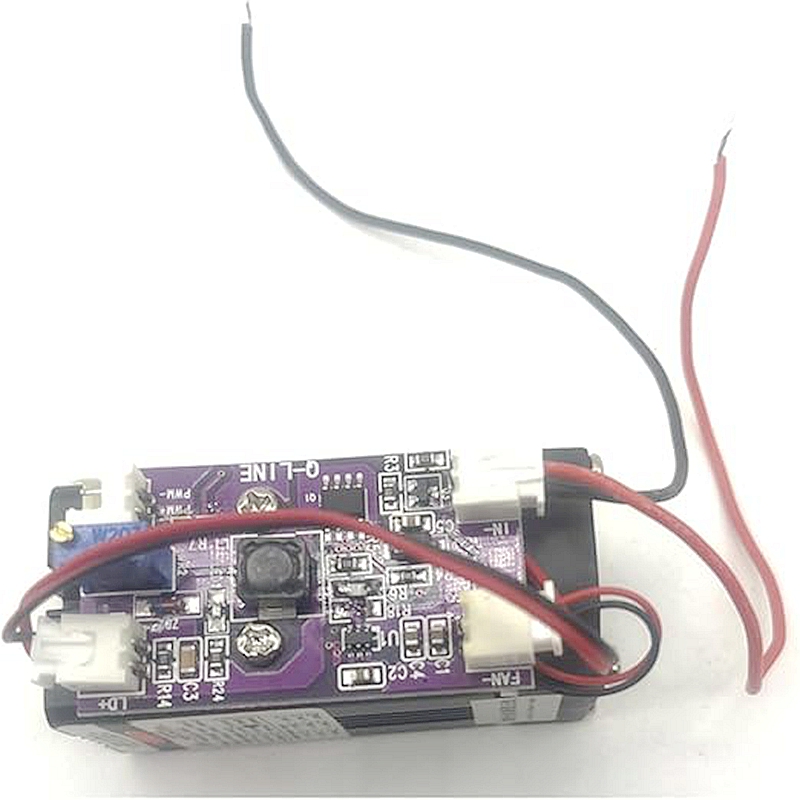

The 532nm 100MW laser module consists of a laser head (laser diode+shell+lens) and its driving circuit board. The laser head is equipped with a fan for cooling
Input voltage is 12 V, ESP voltage is too high
