Description

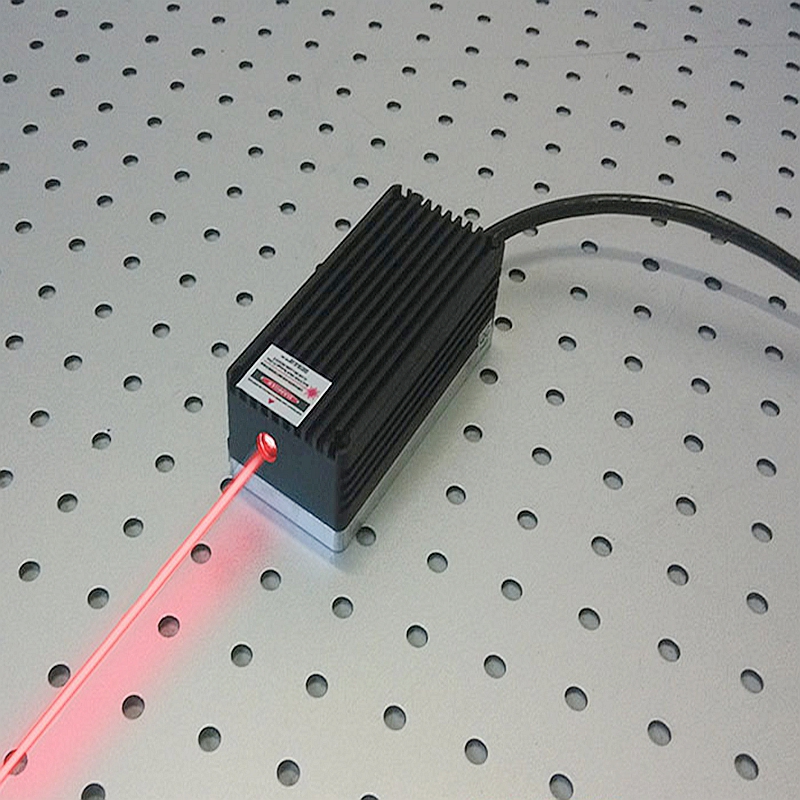

638nm 1000mW High Power Red Laser
Easy use & maintenance free
Long life operation
High efficiency
High reliability
| Model No. | LSR640H1 |
| Wavelength | 638nm+-5nm |
| Transverse Mode | Near TEM00 |
| Output Power | 1000mW |
| Operation Mode | CW or Modulation |
| Longitudinal mode | Multi Mode |
| Modulation | Analog or TTL modulation 0~30Khz |
| Line width | <3 nm |
| Polarization | >100:1 |
| Beam Spot Shape | Circular, aspect ratio<1.1:1 |
| Pointing Stability | <0.05 mrad |
| Beam Diameter(1/e2) | <3*5mm |
| Beam Divergence | <1.5 mrad |
| Beam Height from Base | 29mm |
| Power Stability* | <+-3% per 4 hrs |
| Temperature Stabilizing | TEC |
| Warm Up Time | <5 minutes |
| Beam Quality (M2) | <2 |
| Optimum Operating Temperature | 20~30oc |
| Storage Temperature | 10~50oC |
| MTTF** | 5,000 hrs |
| Dimensions | 102(L)x40(W)x42(H)mm3 |

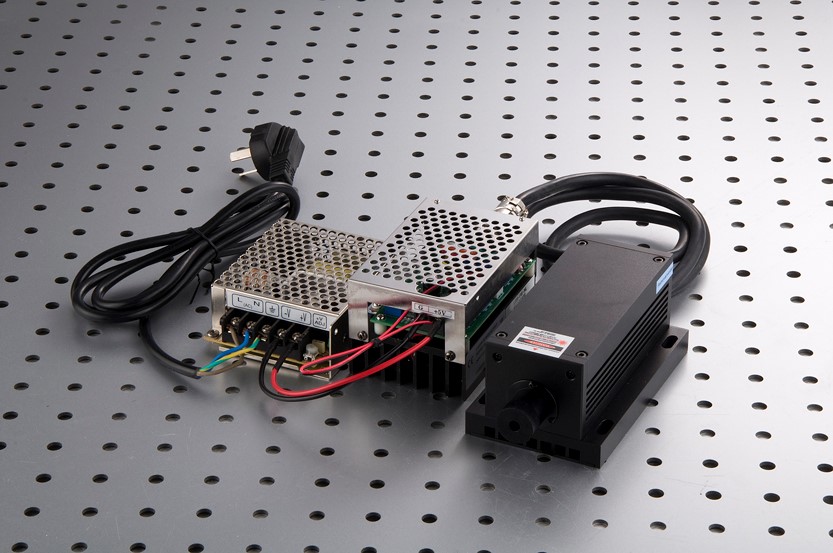

| Power Supply | A. OEM type
LSR-PS-NI: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input |

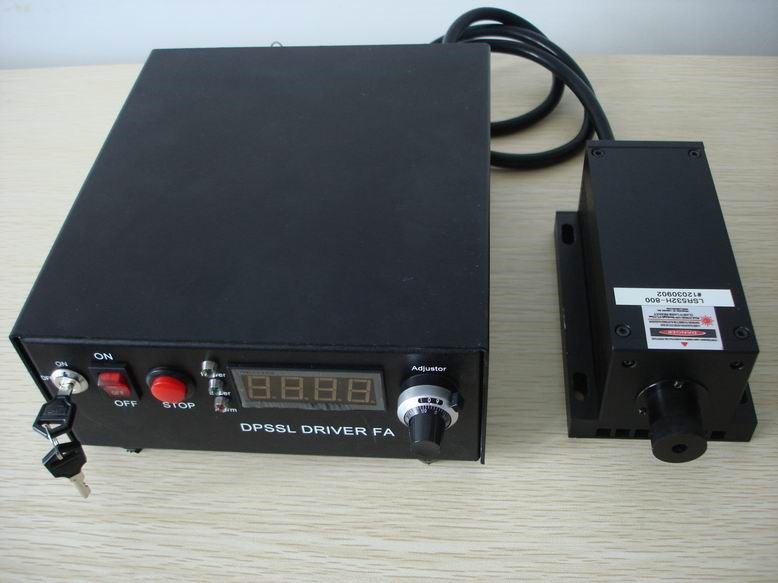

| C. Adjustable Lab type
LSR-PS-FA: 179(W)x148(D)x56(H)mm3 |
Please kindly check the attached datasheet:
638nm 1000mW High Power Red Laser
