Description

500pcs/Lot 1.2W 24V 120LM IP65 waterproof light box led module UL Listed, Powered by Nichia LED, 175degrees beam angle for backlighting slim boxes sign

Product Feature:

1.Powered by original Nichia 1.0Watt LED

2. Wide viewing angle with even light output: 175 degrees

3. Backlighting to light boxes whose depth is more than 35mm.

4. Energy saving on lightbox illumination: 12.6Watt per sqm



5. Cost effective on lightbox illumination: less than USD18.0 per sqm

6. Fire retardant (V0 class), waterproof, IP65, ideal for outdoor use



7. Back lighting in Single-side Lightbox signs and signage advertising signs

8. 5 Years warranty with High quality



Hot-Selling Led Module for Sign:

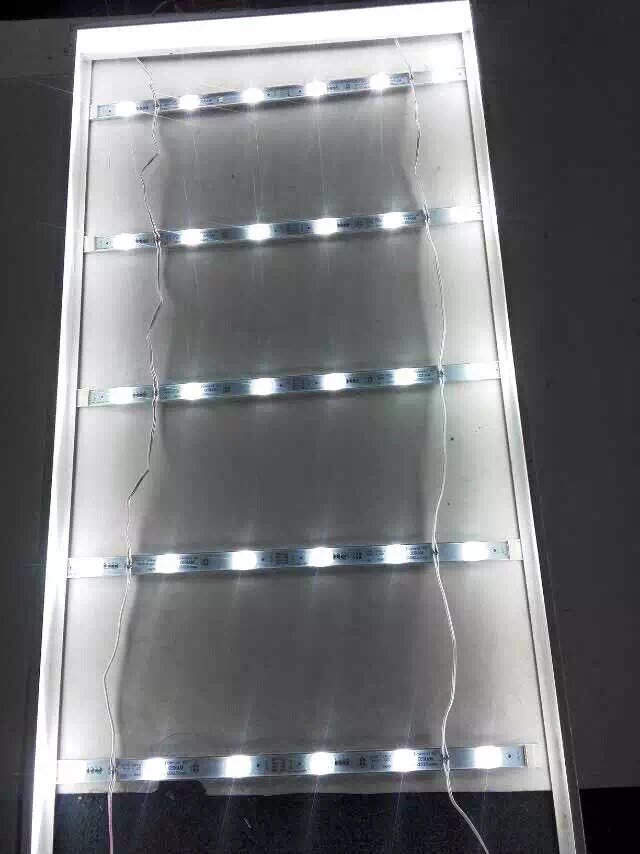

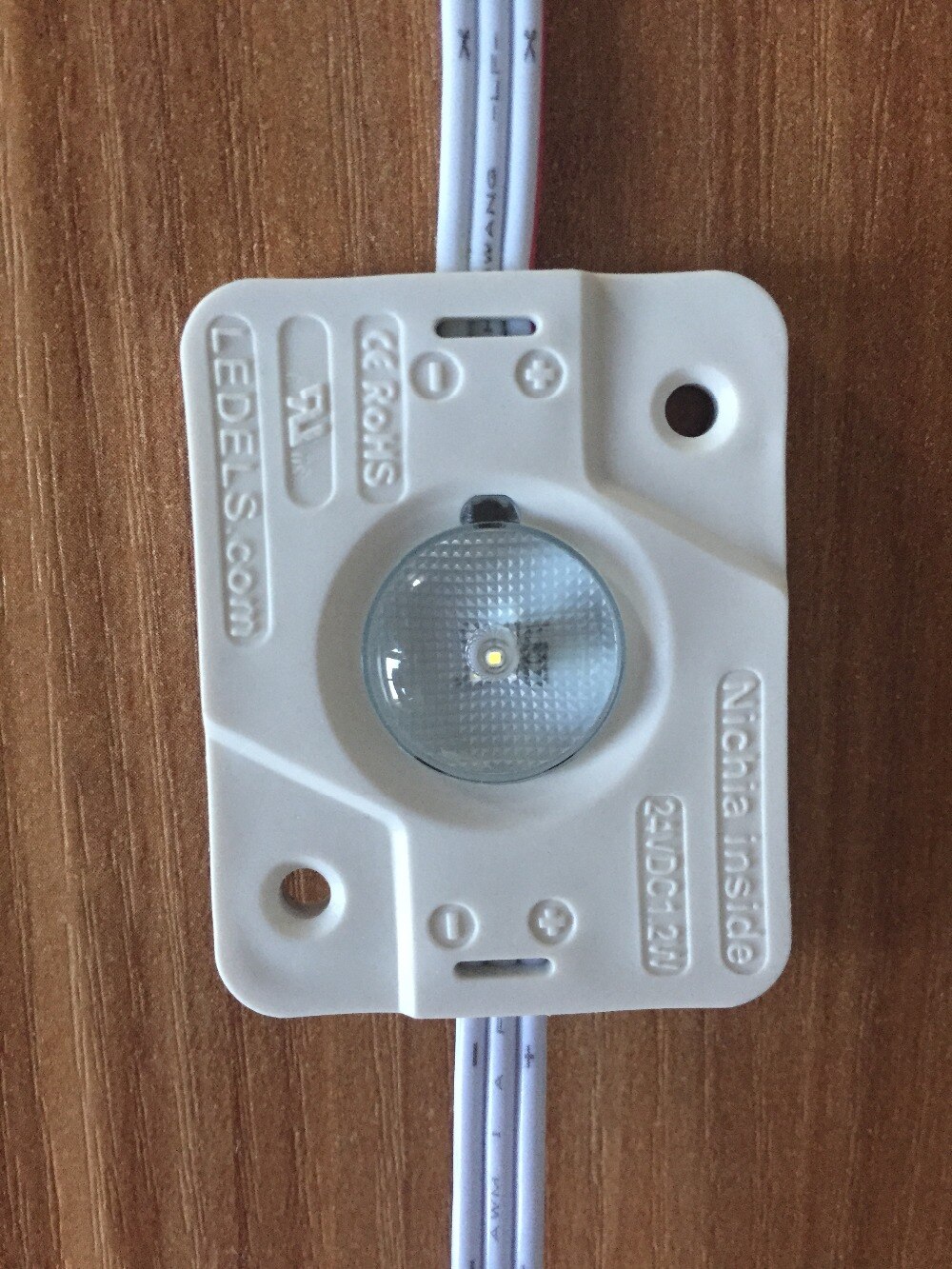

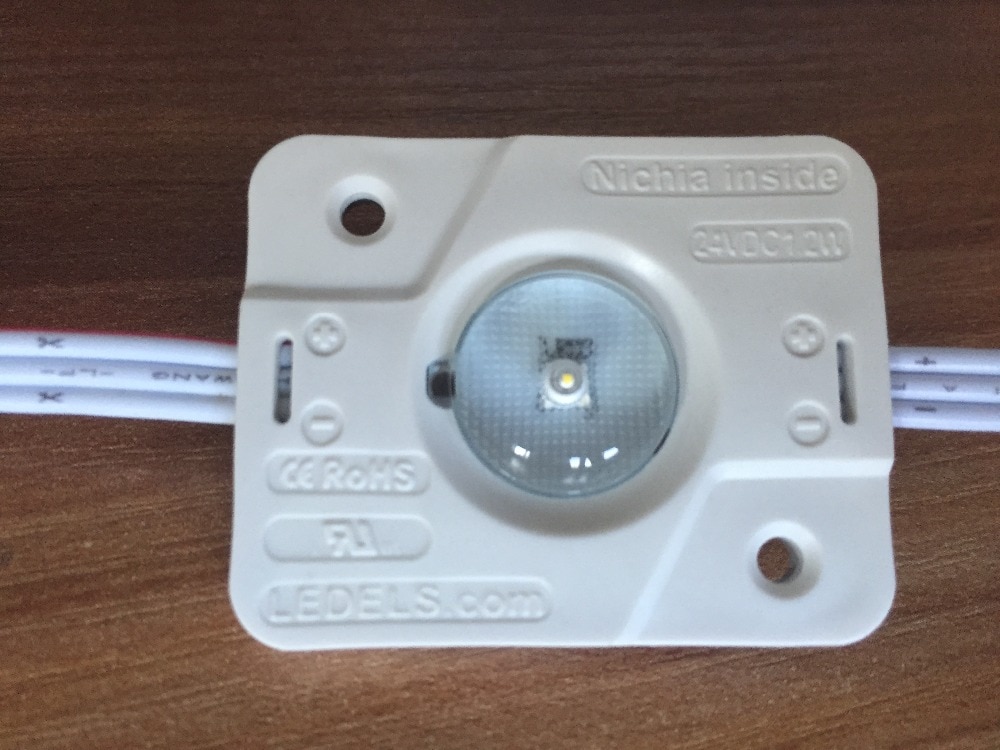

Pic of Nichia Backlits Lightbox Led Modules:



Remarks: for internal illumination of channel letters or lightbox (acrylic) whose depth is 35 to 120mm, cove lighting and back lighting, long lifespan with high brightness.



Specifications

Model No.	LL-F12P600W1L44
LED Type	NICHIA 1W LED inside
Wide Beam angle	175 degrees
Emitting color	White
luminous flux	120-130lm
Color temperature	6000K-7000K
Operating Temperature	24vdc+-0.5
Operating Current	130MA
Power	1.2Watt
Positioning	Screw & blue Autoadhesive Tape
Shell material	ABS injection&Aluminum PCB board 2.0 thickness
Other colors	Warm white(2800-3500K) cool white(8000-10000K)
warranty	5 years



Features:

·Easy Installation

LED Modules can be easily installed with blue double-sided sticking tape and connectors.

·Friendly environment
Pb free. With CE/RoHS and UL certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.

Application Case



a. Widely Used in Household Lighting.



b. Backlighting for Advertisement ,Signboard and Billboard.

c. Backlighting for advertising Lightingbox.

d. Backlighting for local lighting and advertising signage.







Application Case 1,  175degrees Nichia Led Modules for ceiling lighting



Sign depth:120mm   Quantity:18pcs per square meter

Lightbox Project of 1.6W 12V Nichia LED Modules: 10000mm*13000mm*200mm



 Depth:200mm   Quantity:20pcs per square meter



Order infomation



 MOQ: 500pcs



 Trade term: EXW / FOB Shenzhen



 Delivery time: 3-5 working days for sample order, 7-15 working days for mass order



Warranty



Five years since the date of purchase



Trade Terms:



1. Payment term: T/T 100% payment in advance, or for over 10,000USD, T/T 30% deposit after order confirmed, the balance after goods ready before shipping .or Western Union for small amount .



2. Lead time : normally in 5~10 days after deposit received



3. Sample policy : Samples are always availble for each model .Samples can be ready in 3~7 days once payment received.



4. Discounts : We offer discount for big quantity.

Package



Product Certification:
