1. Available options: 3S / 4S / 6S / 8S / 13S / 17S / 20S / 24S

2. Product advantages: BMS can reduce the number of strings, compatible with other batteries.

For example:

3S compatible with 2S 3S

4S compatible with 2S 3S 4S

6S compatible with 2S 3S 4S 5S 6S

8S compatible with 2S 3S 4S 5S 6S 7S 8S

13S compatible with 2S 3S 4S 5S 6S 7S 8S 10S 12S 13S

17S compatible with 2S 3S 4S 5S 6S 7S 8S 10S 12S 13S 14S 15S 16S 17S

20S compatible with 2S 3S 4S 5S 6S 7S 8S 10S 12S 13S 14S 15S 16S 17S 18S 19S 20S

24S compatible with 2S 3S 4S 5S 6S 7S 8S 10S 12S 13S 14S 15S 16S 17S 18S 19S 20S 21S 24S

3. Applicable battery: 3.7V Li ion battery pack or 3.2V LiFePO4 battery pack

4. Not suitable for: Farad capacitor, lithium titanate battery

5. Balance type: active energy transfer

6. Balance efficiency: 92%

7. Equalization logic: It take two adjacent batteries as a unit, multiple columns are synchronized

8. Trigger condition: adjacent pressure difference > 0.1V

9. Balance current: 800mA

10.Balance cut off: adjacent differential pressure < 0.03V

11.Equalization period: full voltage period (including charging, discharging and idle)

12.Low voltage protection: < 2.5V

13.Sleep power consumption: 2uA low power consumption, battery can be idle for a long time

14.Balance LED indication:

When the LED is turn on, it means that it is in balancing.

When the LED is turn off, it means the balance stops

When the LED light flashes, it means that the internal resistance of the battery is large, disconnected or suspended.

15.About installation: it is suitable for long-term use installed inside the battery, with low power consumption, low heating, high safety and stability. You can use it with BMS for better balance.



Wiring length:

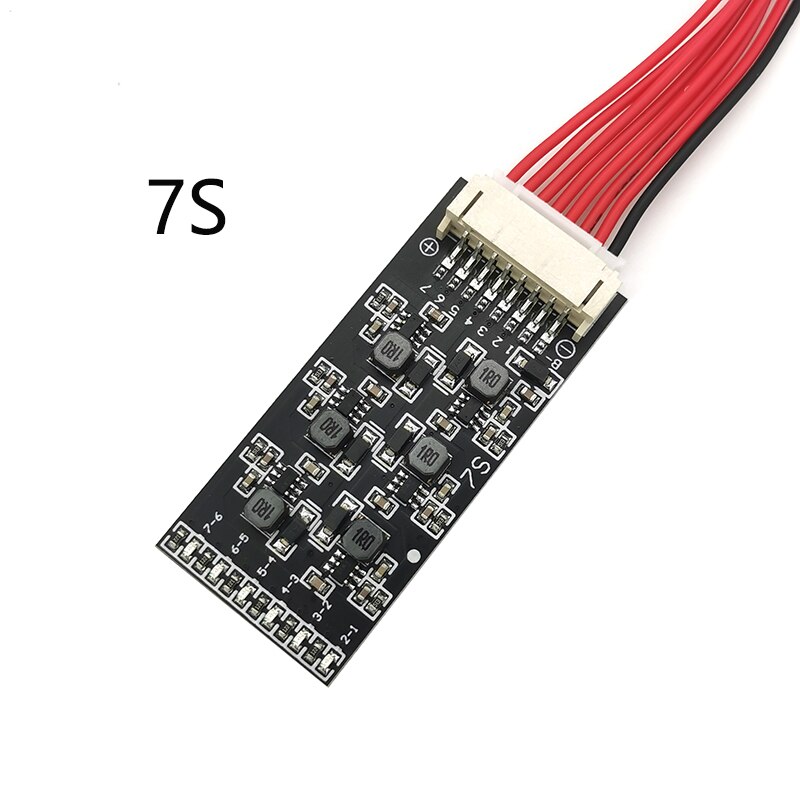

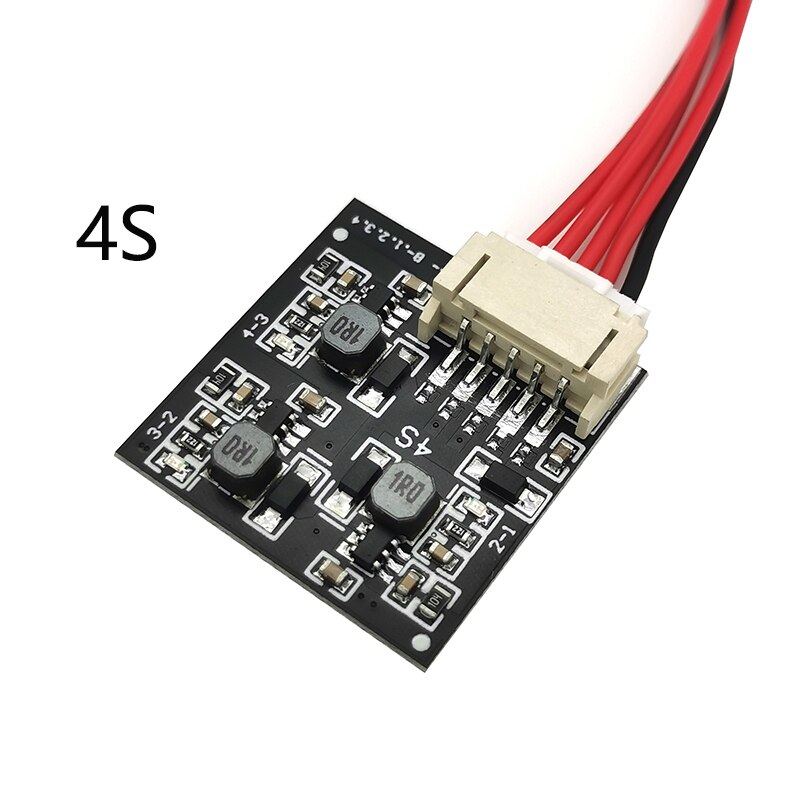

3S: 20CM 4S: 20CM 6S: 20CM 7S: 20CM

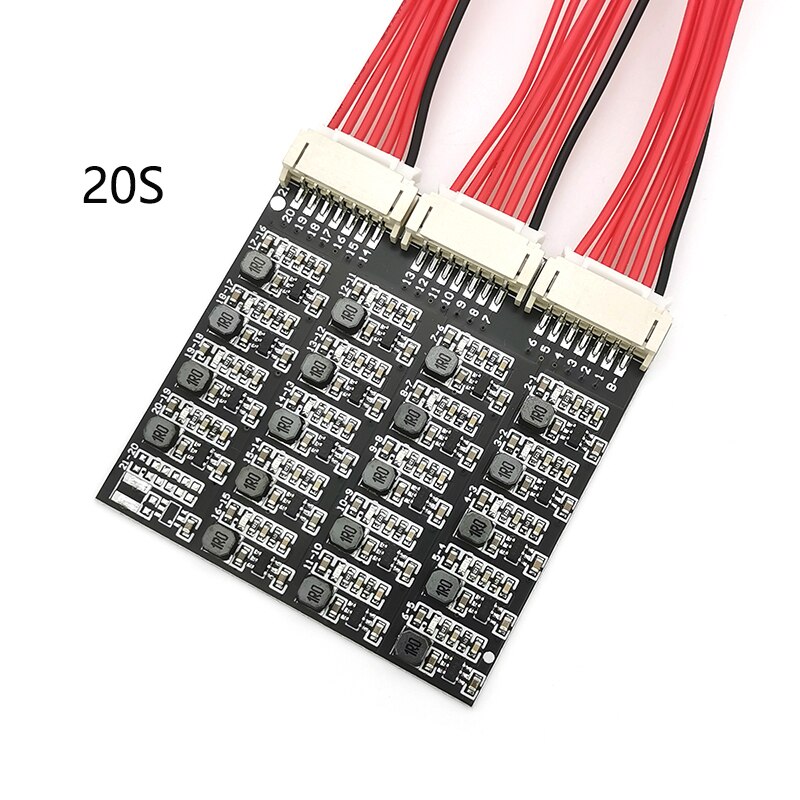

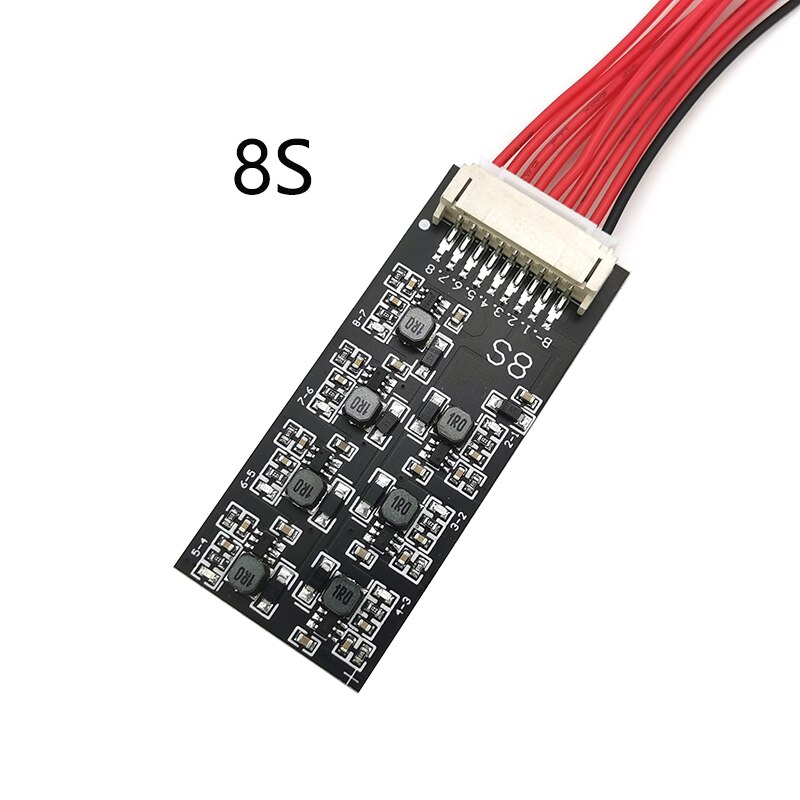

8S: 20CM 13S: 30CM 17S: 30CM 20S: 30CM

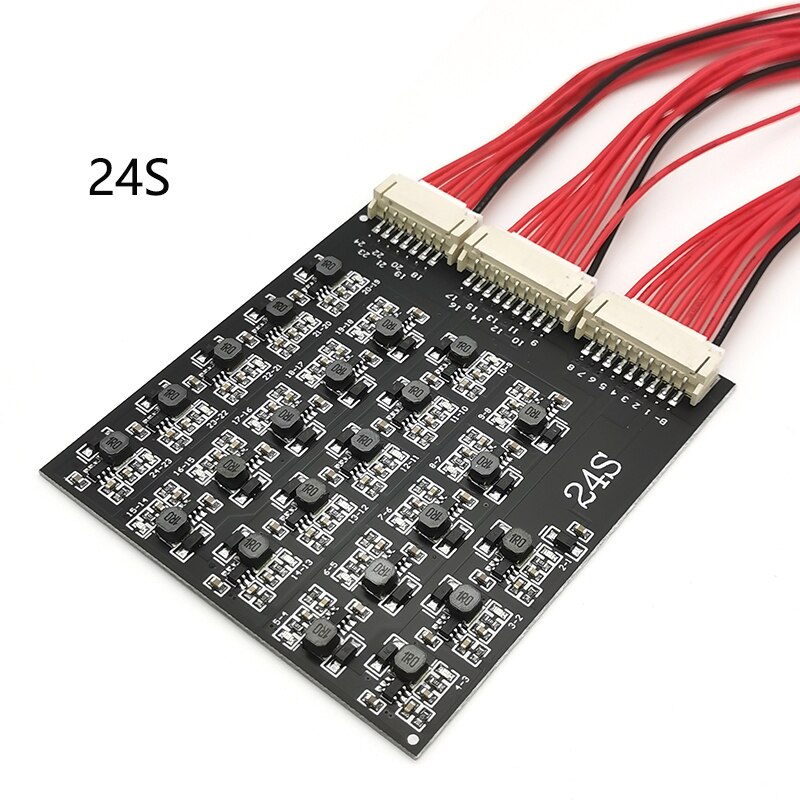

24S: 30CM
