Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Place of Origin: Shanghai, China
- Brand Name: CALT
- Model Number: CWP-S2000A
- Usage: Position Sensor
- Theory: Optical sensor
- Output: Analog SENSOR
- Application: Industrial Automation
- Resolution: Theory of infinite
- Detection method: Precision potentiometer
- Output form: 4-20mA(0~10v, 0~10kohm)
- Supply Voltage: 12-24V DC
- Protection Class: IP65/IP54
- Starting Torque: <600g
- Range: 0-2000mm
- Speed: 1m/s
- Weight: 600g
- Customize: Accept customize

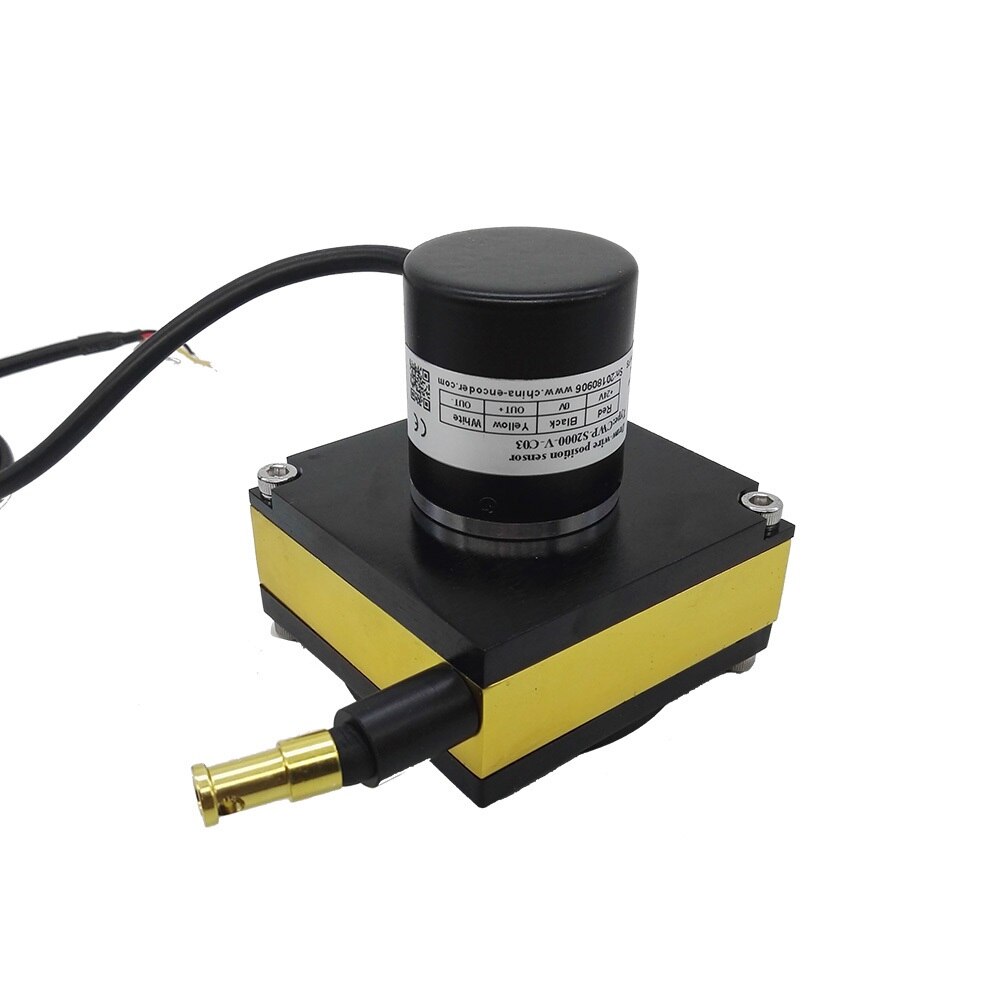

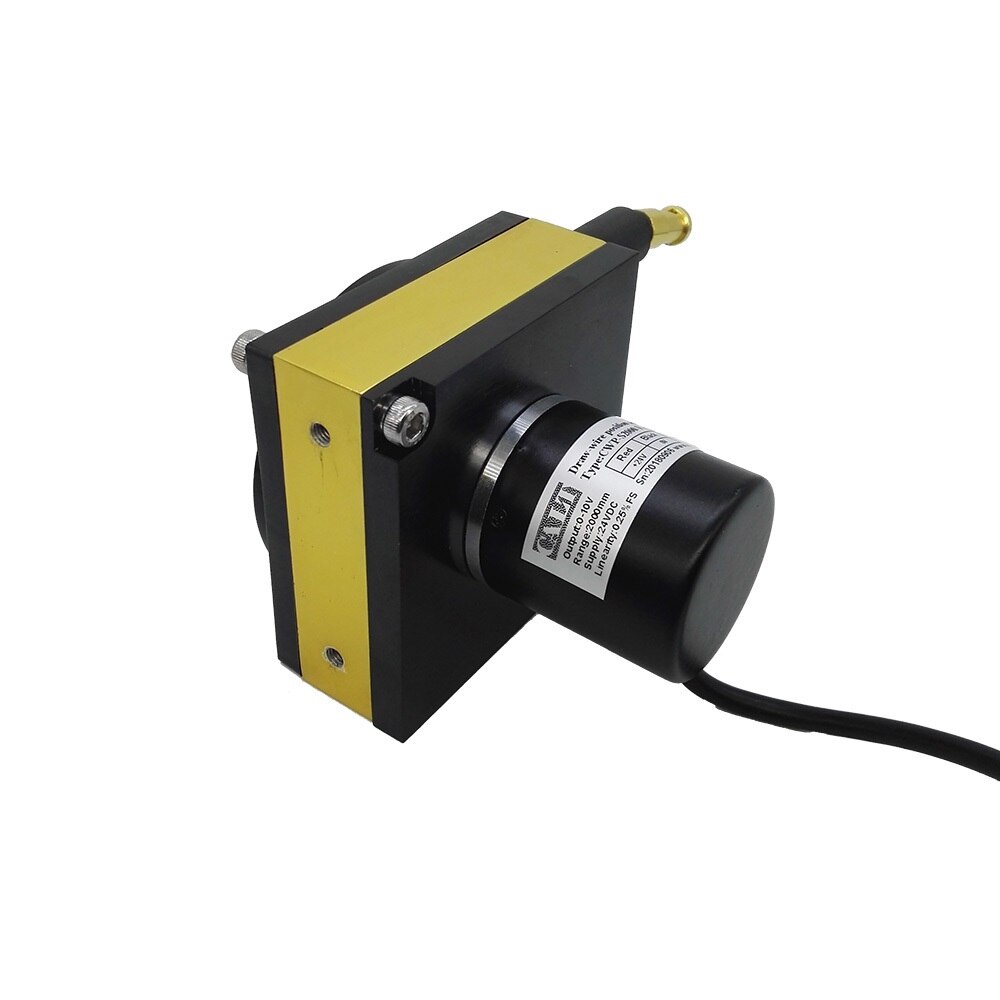

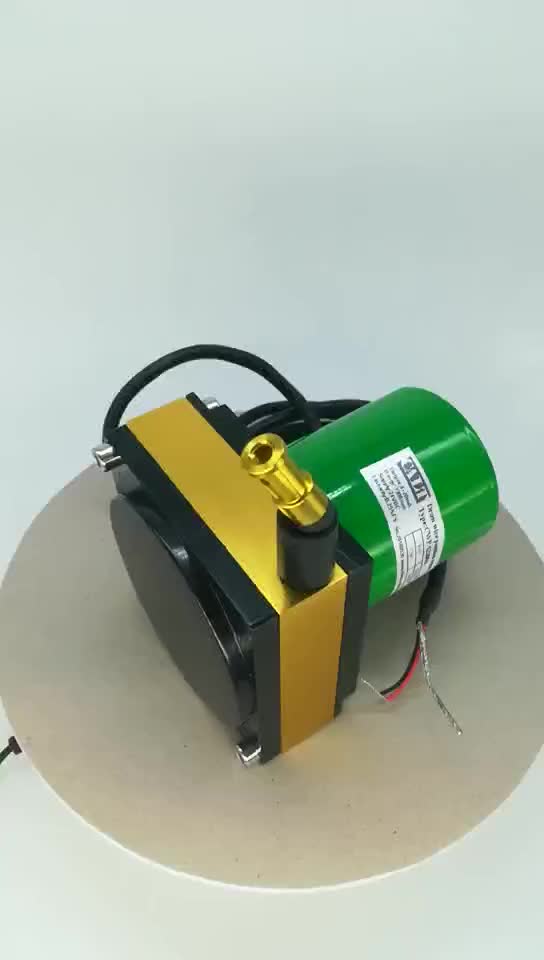

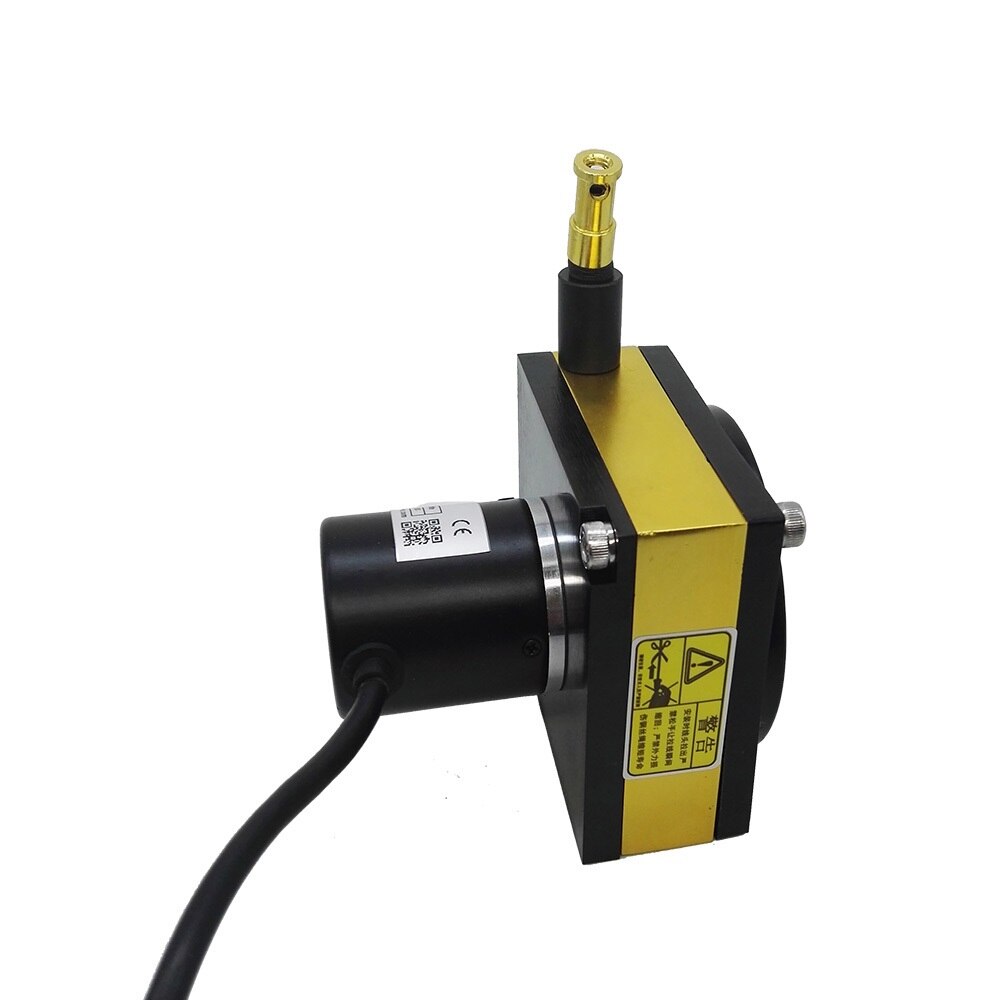

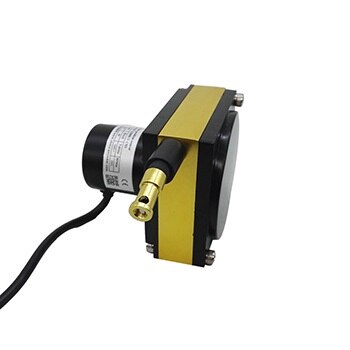

Draw-wire linear potentiometer position sensor. Draw-wire Position Sensor is a highly efficient linear displacement measuring device, with ingenious design principle, through scientific combination of the special steel cable and angle measurement components (potentiometer or encoder), it make linear displacement motion of an object convert into electric signal that measurable and linearly proportional, thereby achieve accurate displacement measurement data output.
Model :
Dimensions:
Solid shaft type GHS38 Series.
Widely used in automatic control, automatic measurement, as the angle and speed sensors.
ASIC devices internal, good reliability, long life, anti-jamming performance. Stainless steel shaft has a higher stability and protection.Metal shell is more solid and anti-impact. Bearing load heavy, anti-oil and water
Servo-motor Encoder GSM48 Series.
Widely used in the field of automatic control AC servo unit, particularly suitable for use in servo motor supporting.
Internal ASIC devices, high reliability, long life, strong anti-interference. Wide range of resolutions, and does not require signal conditioning. With A, B, Z and U, V, W six-channel signal output can be connected with standard line driver (26LS31) RS422, can provide 12 output signal, and is compatible with TTL
Hollow Shaft Type GHH38 Series.
Used in automatic control, measurement, robot X-Y working platform, printing and packaging.
Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.
Hollow Shaft Type GHH100 series.
Used in automatic control, measurement, robot X-Y working platform, printing and packaging.
Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.
Manual Pulse Generator TM1469 series.
For CNC machine origin correction and signal split.
Full plastic housing, high dielectric strength, the axis transfer switch and Oil Pollution Prevention seal design.
Draw-wire Position Sensor CESI series.
compact size, rugged construction, easy to install
economic cost, and cost savings for customers
Various signals output optional: push-pull, TTL, open collector and so on
The cylinders, testing machines and other industry has achieved large-scale applications, reliability
Packing Details : carton packed for each encoder or items, and then pack with thick carton for shipping.
Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.
