Description

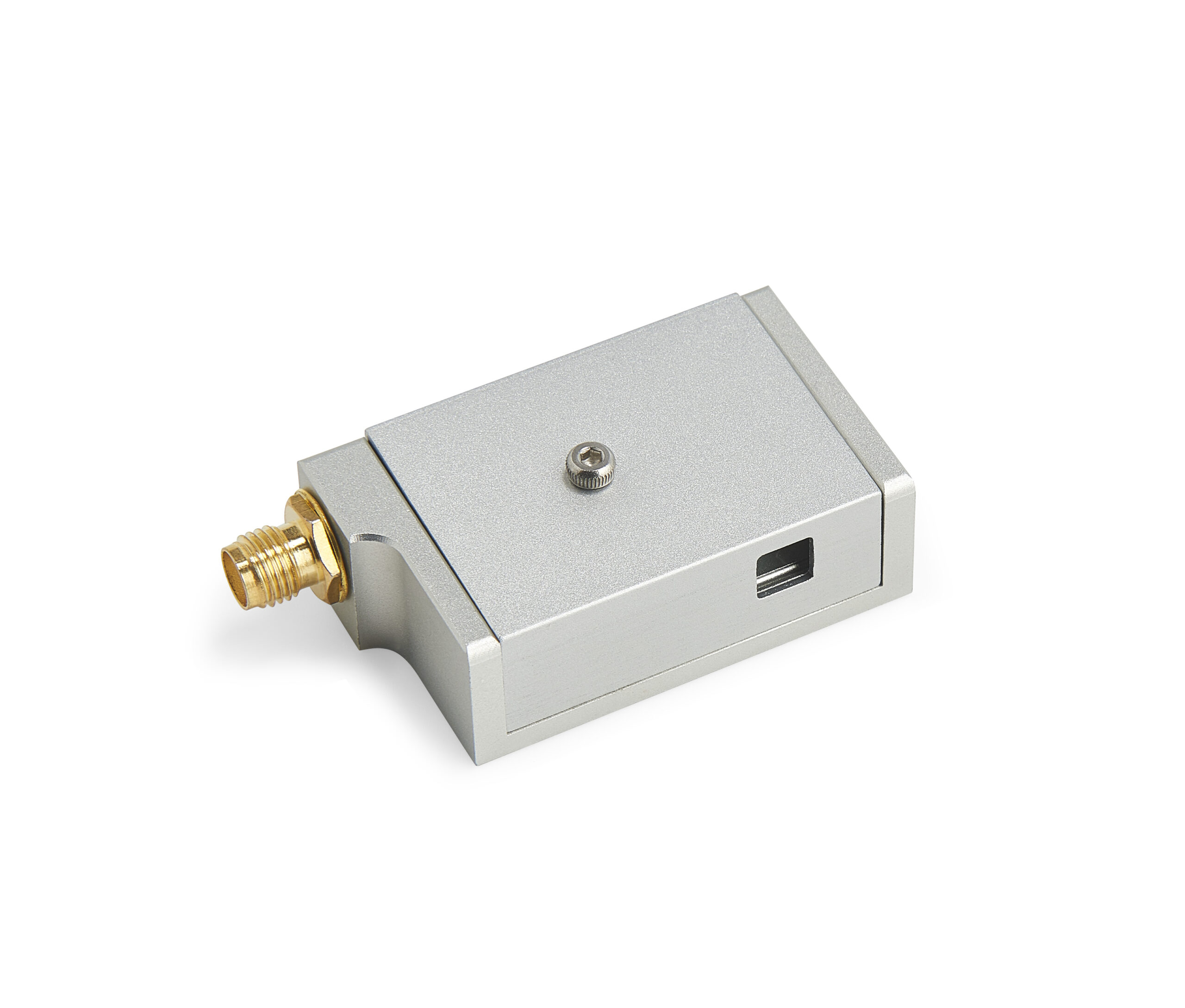

自由空间声光调制器
| 型号 | 波长（nm） | 频率（Mhz） | 通光孔径（mm） | 衍射效率（%） | 光功率密度（W/mm²） | 驱动功率（W） | 输入阻抗（Ω） | 电压驻波比 |
| Z-532-80-L-T-D1-T-A-K | 532 | 80 | 1 | 85 | 250 | 0.8 | 50 | <1.3:1 |
| Z-532-80-L-T-D2-T-A-K | 532 | 80 | 2 | 85 | 250 | 1.5 | 50 | <1.3:1 |
| Z-532-100-L-T-D1-T-A-K | 532 | 100 | 1 | 85 | 250 | 0.8 | 50 | <1.3:1 |
| Z-532-200-L-T-D0.3-T-A-K | 532 | 200 | 0.3 | 70 | 250 | 2 | 50 | <1.5：1 |
| Z-532-200-L-T-D4-T-A-K | 532 | 200 | 4 | 80 | 250 | 4 | 50 | <1.5：1 |
| Z-632-80-L-T-D1-T-A-K | 632 | 80 | 1 | 85 | 250 | 0.8 | 50 | <1.3:1 |
| Z-632-100-L-T-D1-T-A-K | 632 | 100 | 1 | 85 | 250 | 0.8 | 50 | <1.3:1 |
| Z-632-200-L-T-D0.3-T-A-K | 632 | 200 | 0.3 | 70 | 250 | 2.5 | 50 | <1.5：1 |
| Z-632-200-L-T-D1-T-A-K | 632 | 200 | 1 | 85 | 250 | 1.5 | 50 | <1.5：1 |
| Z-780-110-L-T-D1-T-A-K | 780 | 110 | 1 | 85 | 250 | 1.3 | 50 | <1.3:1 |
| Z-780-150-L-T-D1-T-A-K | 780 | 150 | 1 | 75 | 250 | 2 | 50 | <1.3:1 |
| Z-780-150-L-T-D2-T-A-K | 780 | 150 | 2 | 75 | 250 | 2.5 | 50 | <1.5：1 |
| Z-780-200-L-T-D0.3-T-A-K | 780 | 200 | 0.3 | 70 | 250 | 3 | 50 | <1.5：1 |
| Z-780-200-L-T-D2-T-A-K | 780 | 200 | 2 | 70 | 250 | 3.5 | 50 | <1.5：1 |
| Z-850-110-L-T-D0.7-T-A-K | 850 | 110 | 0.7 | 80 | 250 | 1 | 50 | 1.2：1 |
| Z-850-200-L-T-D0.3-T-A-K | 850 | 200 | 0.3 | 80 | 250 | 3 | 50 | <1.5：1 |
| Z-1064-100-L-T-D0.7-T-A-K | 1064 | 100 | 0.7 | 85 | 250 | 1.8 | 50 | 1.2：1 |
| Z-1064-120-L-T-D0.7-T-A-K | 1064 | 120 | 0.7 | 85 | 250 | 1.8 | 50 | <1.3:1 |
| Z-1064-150-L-T-D0.5-T-A-K | 1064 | 150 | 0.5 | 85 | 250 | 2.5 | 50 | <1.3:1 |
| Z-1064-200-L-T-D0.3-T-A-K | 1064 | 200 | 0.3 | 70 | 250 | 2.5 | 50 | <1.3:1 |
| Z-1550-40-L-T-D0.7-T-A-K | 1550 | 40 | 0.7 | 80 | 250 | 2.5 | 50 | <1.3:1 |
| Z-1550-60-L-T-D0.5-T-A-K | 1550 | 60 | 0.5 | 80 | 250 | 2.5 | 50 | <1.3:1 |
| Z-1550-80-L-T-D0.7-T-A-K | 1550 | 80 | 0.7 | 80 | 250 | 2.5 | 50 | <1.3:1 |
| Z-1550-150-L-T-D0.5-T-A-K | 1550 | 150 | 0.5 | 65 | 250 | 2.5 | 50 | <1.5：1 |
| Z-1550-200-L-T-D0.3-T-A-K | 1550 | 200 | 0.3 | 55 | 250 | 3 | 50 | <1.5：1 |
| 可给客户提供定制服务：波长500-2000nm可选任意波段.频率40-300Mhz可选任意频率，频率精度可定制。通光孔径0.1-4mm可定制，外壳尺寸可以按照客户系统要求定制合适的外壳尺寸包含外壳材料。可满足客户对某一指标要求进行优化器件。 | ||||||||
Free space acoustooptic modulator
| Model | Wavelength（nm） | Frequency（Mhz） | Aperture of light （mm） | Diffraction efficiency（%） | Optical power density（W/mm²） | Driving power（W） | The input impedance（Ω） | Voltage standing wave ratio |
| Z-532-80-L-T-D1-T-A-K | 532 | 80 | 1 | 85 | 250 | 0.8 | 50 | <1.3:1 |
| Z-532-80-L-T-D2-T-A-K | 532 | 80 | 2 | 85 | 250 | 1.5 | 50 | <1.3:1 |
| Z-532-100-L-T-D1-T-A-K | 532 | 100 | 1 | 85 | 250 | 0.8 | 50 | <1.3:1 |
| Z-532-200-L-T-D0.3-T-A-K | 532 | 200 | 0.3 | 70 | 250 | 2 | 50 | <1.5：1 |
| Z-532-200-L-T-D4-T-A-K | 532 | 200 | 4 | 80 | 250 | 4 | 50 | <1.5：1 |
| Z-632-80-L-T-D1-T-A-K | 632 | 80 | 1 | 85 | 250 | 0.8 | 50 | <1.3:1 |
| Z-632-100-L-T-D1-T-A-K | 632 | 100 | 1 | 85 | 250 | 0.8 | 50 | <1.3:1 |
| Z-632-200-L-T-D0.3-T-A-K | 632 | 200 | 0.3 | 70 | 250 | 2.5 | 50 | <1.5：1 |
| Z-632-200-L-T-D1-T-A-K | 632 | 200 | 1 | 85 | 250 | 1.5 | 50 | <1.5：1 |
| Z-780-110-L-T-D1-T-A-K | 780 | 110 | 1 | 85 | 250 | 1.3 | 50 | <1.3:1 |
| Z-780-150-L-T-D1-T-A-K | 780 | 150 | 1 | 75 | 250 | 2 | 50 | <1.3:1 |
| Z-780-150-L-T-D2-T-A-K | 780 | 150 | 2 | 75 | 250 | 2.5 | 50 | <1.5：1 |
| Z-780-200-L-T-D0.3-T-A-K | 780 | 200 | 0.3 | 70 | 250 | 3 | 50 | <1.5：1 |
| Z-780-200-L-T-D2-T-A-K | 780 | 200 | 2 | 70 | 250 | 3.5 | 50 | <1.5：1 |
| Z-850-110-L-T-D0.7-T-A-K | 850 | 110 | 0.7 | 80 | 250 | 1 | 50 | 1.2：1 |
| Z-850-200-L-T-D0.3-T-A-K | 850 | 200 | 0.3 | 80 | 250 | 3 | 50 | <1.5：1 |
| Z-1064-100-L-T-D0.7-T-A-K | 1064 | 100 | 0.7 | 85 | 250 | 1.8 | 50 | 1.2：1 |
| Z-1064-120-L-T-D0.7-T-A-K | 1064 | 120 | 0.7 | 85 | 250 | 1.8 | 50 | <1.3:1 |
| Z-1064-150-L-T-D0.5-T-A-K | 1064 | 150 | 0.5 | 85 | 250 | 2.5 | 50 | <1.3:1 |
| Z-1064-200-L-T-D0.3-T-A-K | 1064 | 200 | 0.3 | 70 | 250 | 2.5 | 50 | <1.3:1 |
| Z-1550-40-L-T-D0.7-T-A-K | 1550 | 40 | 0.7 | 80 | 250 | 2.5 | 50 | <1.3:1 |
| Z-1550-60-L-T-D0.5-T-A-K | 1550 | 60 | 0.5 | 80 | 250 | 2.5 | 50 | <1.3:1 |
| Z-1550-80-L-T-D0.7-T-A-K | 1550 | 80 | 0.7 | 80 | 250 | 2.5 | 50 | <1.3:1 |
| Z-1550-150-L-T-D0.5-T-A-K | 1550 | 150 | 0.5 | 65 | 250 | 2.5 | 50 | <1.5：1 |
| Z-1550-200-L-T-D0.3-T-A-K | 1550 | 200 | 0.3 | 55 | 250 | 3 | 50 | <1.5：1 |
| Customers can be customized services: wavelength 500-2000nm optional any band, frequency 40-300mhz optional any frequency, frequency accuracy can be customized. Optical aperture 0.1-4mm can be customized, the size of the shell can be customized according to the customer system requirements of the appropriate size of the shell including the shell material. It can meet the customer’s requirement for a certain index to optimize the device. |
||||||||
